Product Flow: 12 SCFH (0.31 Nm3/hr or 6 LPM)
Product Pressure: 9 psig (62 kPa or 0.62 barg)
Product Concentration: Up to 95%
Product Dew Point: -100 degrees F (-73 degrees C)
Dimensions: 19x10x27 inches
Weight: 53 pounds
Physical Connection, Product Gas Outlet: B-size oxygen adapter
Power, Single Phase:
120V ~ ±10%, 60 Hz, 5.0 A
230V ~ ±10%, 50 Hz, 2.5 A
230 V ±10%, 60 Hz, 2.3 A
(This unit has CSA and UL certifications.)

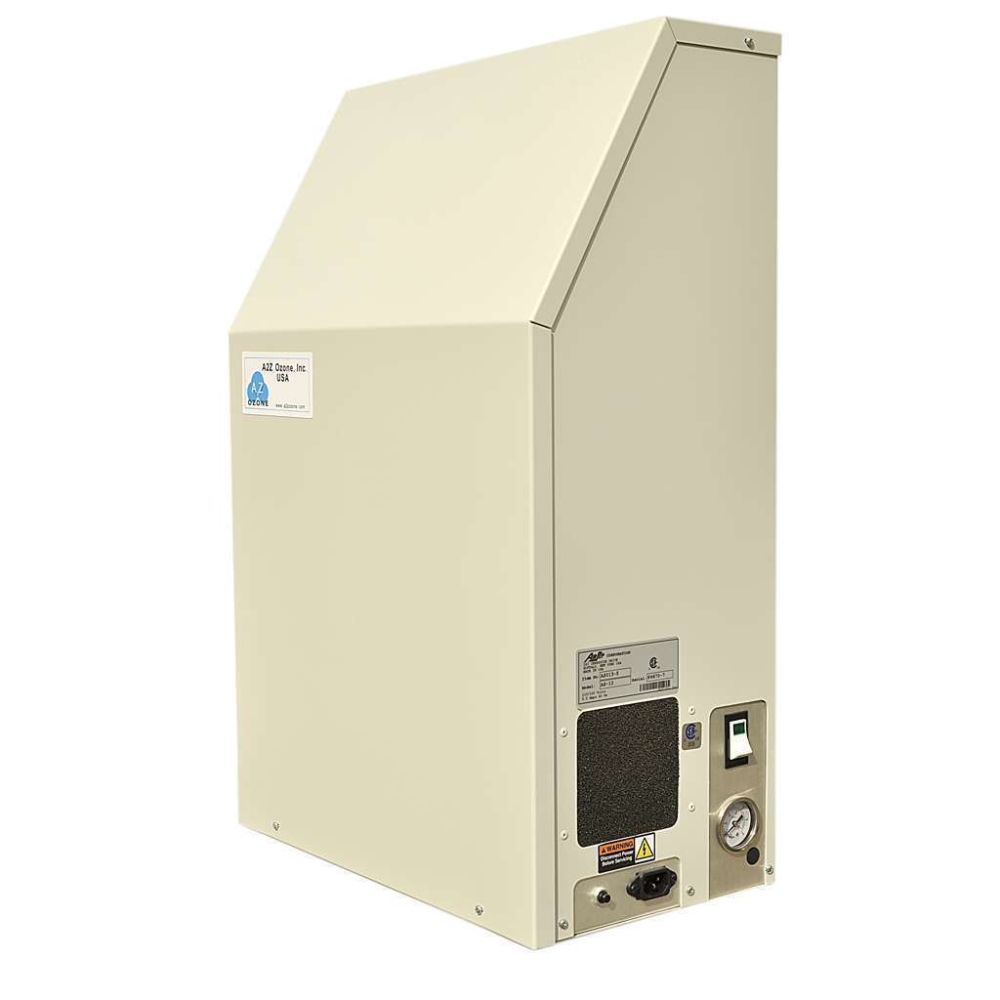

A2Z Ozone regards the AirSep brand as the best oxygen generator on the market. The Topaz Oxygen Generator works best with ozone generators that produce between 1 g/hour and 16 g/hour of ozone output.
A2Z Ozone Model(s) | Ozone Output | Oxygen Generator Model |
1. S-Series, Industrial - S-20G to S-32G 2. Lab Series, Scientific - 20G Lab to 32G Lab | 20 g/hour to 32 g/hour | Onyx Ultra |
| 1 g/hour to 10 g/hour | Onyx |
| 1 g/hour to 16 g/hour | Topaz |
| 20 g/hour to 32 g/hour | Topaz Ultra |
S-Series, Industrial - S-50G | 40 g/hour to 60 g/hour | Use two Topaz Ultra |
