Lab-Max Research Water Ozone Generators – Maximum Ozone Output 20 g/hour to 32 g/hour

No customer reviews yet

Price range: $ 5,129.00 through $ 5,499.00 -10%

Select Plug Type Based on Country

Select the Desired Max. Ozone Capacity (g/hour)

Clear

SKU: N/A Category: Ozone Generators Tags: air-cooled, BOD, COD, Flow meter, low flow rate, no-ozone alarm, ozone-resistant materials, ozonolysis, precision control, Water Applications, Water Ozone Generator, water quality

***NOTE: Because of their similarities, you may need help deciding whether you need the Lab or the S-Series. The Lab Research and S-Series are similar in characteristics. The difference is that the Lab Research generators have the ability to handle a much lower flow rate.***

NOTE to Businesses, Universities, and Government customers: If your department needs a formal, fast quote, send your request through email at [email protected]. Please include the product of interest, quantity, your contact information and your shipping address.

International Customers: We ship internationally. Contact Customer Service for all international orders: +1-502-499-4977, Option 1; or at the email address above.

Applications Specifications Features Included with Purchase Additional Consideration Related Parts Share this Page

Previous Next

Like the lab benchtops, these ozone generators provide opportunities for ozonolysis. Other applications include cleaning water during procedures. That includes managing BOD (Biological Oxygen Demand) and COD (Chemical Oxygen Demand) measurements.

Model	Max. Ozone Capacity	Oxygen Feed Flow Rate	Ozone Concentration (Adjustable)	Energy Usage
20G Lab	20 g/hour	8 LPM	45-70 g/m3	280W
32G Lab	32 g/hour	8 LPM	30-50 g/m3	372 W

NOTES:

To get a stable ozone output, run the Lab Benchtop Ozone Generator for 10 minutes before ozonation.
The Lab Benchtop may produce about 2%–7% higher or lower ozone concentration in the first 10 minutes.
The Lab Benchtops only work with oxygen input of 2–4 psi (it does not work with ambient air).
The oxygen flow rate is between 1/8 to 2 LPM.

The Lab Research Water Ozone Generators have most of the same features as the Lab Benchtops. They are reliable in research environments. These ozone generators are larger and more powerful than the Lab Benchtops.

Some Universal Features for the Lab Research Water Ozone Generators

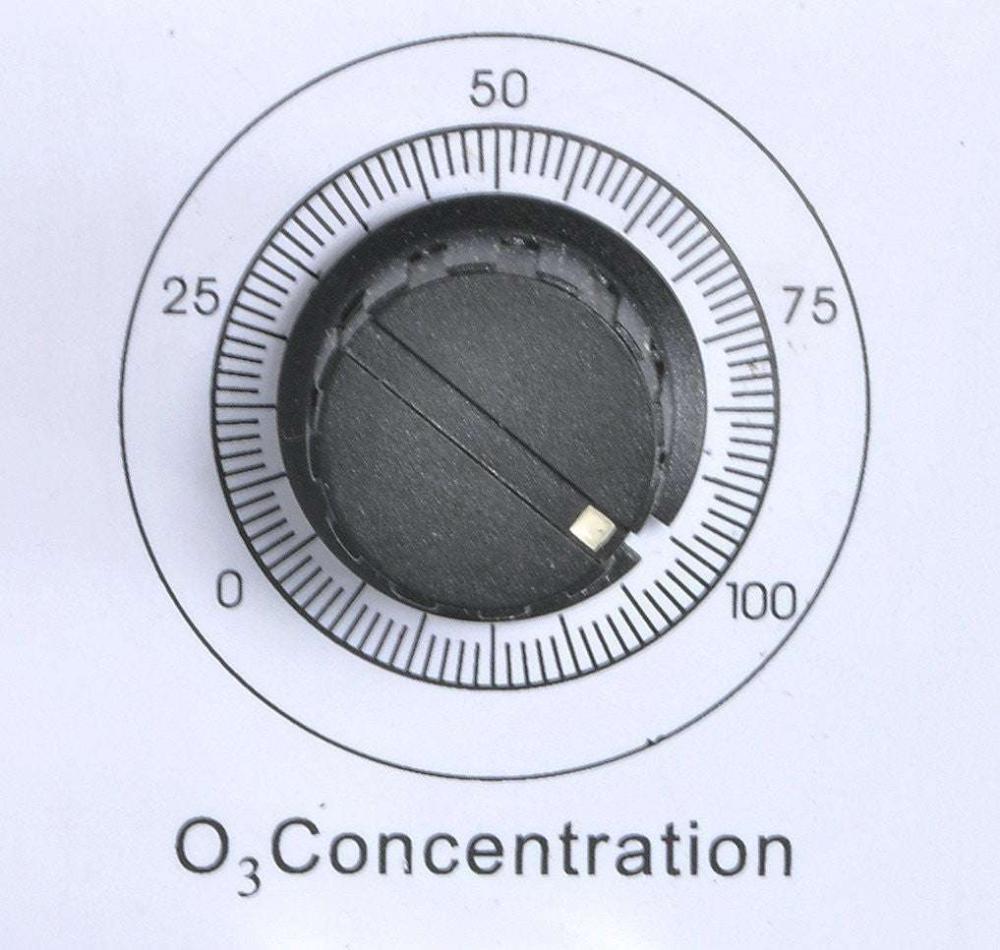

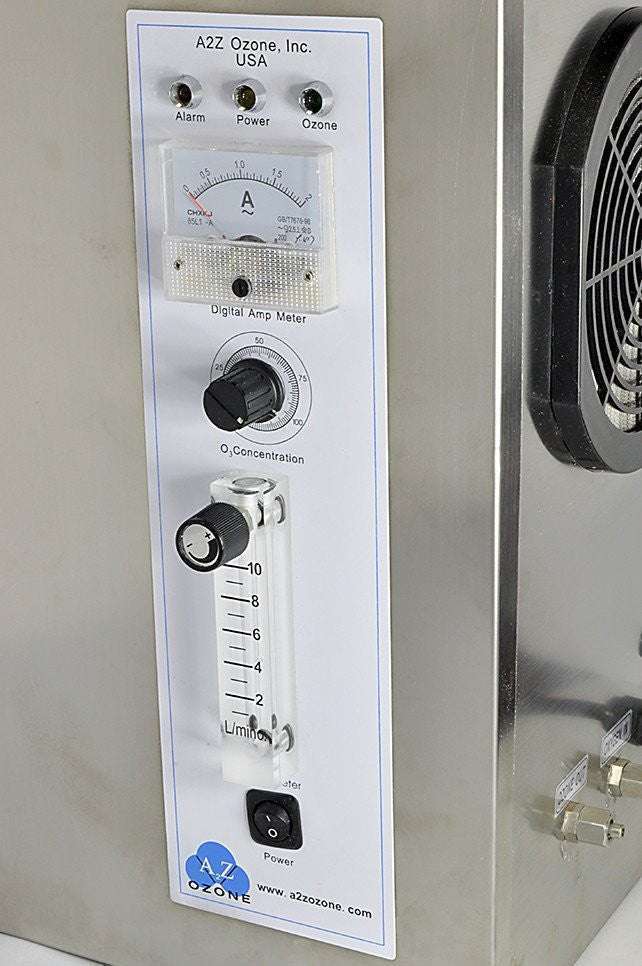

Corona Discharge Technology	Variable Ozone Output Controls	Cooling Requirement--Air	Adjustable Flow Meter	LED Status Indicators
Built for Longer Runtimes	Low Maintenance Requirement	Easy Set-Up	Easy Operation	Fault Warning LED -- No Ozone
0-0.9 mA Panel Meter	Stainless Steel Ozone Resistant Outlets	PTFE, Quartz Glass, and Ceramic Tubes	Ozone Resistant Materials	Precision Control

Some Universal Measurements for the Lab Research Water Ozone Generators

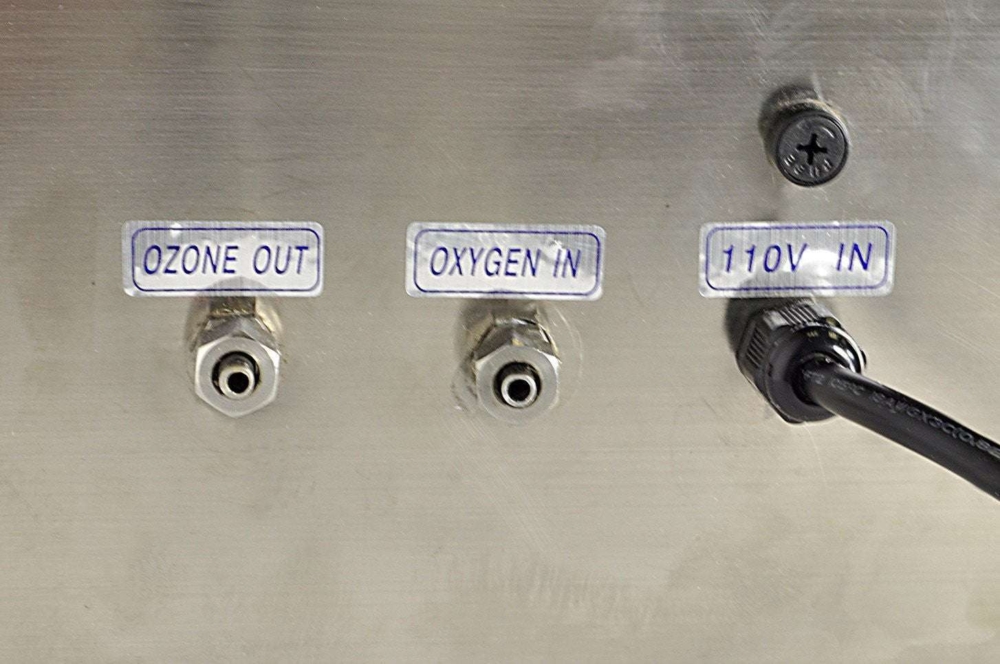

Barb Sizes:	Ozone Out: 1/4" Stainless Steel Barb	Air Out: 1/4" FNPT	Oxygen In: 1/4" Stainless Steel Barb
Dimensions/Weight:	110VAC: 19 Pounds, 19x29x10 Inches	240VAC: 42 Pounds, 18.5x9x28.5 Inches

32G or 20G Lab Benchtop Ozone Generator
8 ft. PTFE tubing (Ozone Out)
8 ft. polyurethane tubing (Oxygen In)
English User’s Manual (manuals are also available in French, German, Italian, Portuguese, and Spanish. Please contact us with your request)
1-Year Parts and Service Warranty

All of A2Z Ozone’s Lab-Series ozone generators have similar requirements.

For your convenience, we sell oxygen generators at reasonable prices. These are the oxygen generators we know will work with our ozone generators.

Recommended Oxygen Source, Oxygen Generator Model:
Topaz Ultra Oxygen Generator
(Ozone output of 20G to 32G/hour)
For Best Results, Keep the Lab Research Water Ozone Generator’s Calibration Schedule Up-to-Date
Calibrate every six months. Calibrate or Contact Us for an appointment

Only Use Official A2Z Ozone Replacement Parts and Accessories
Purchase these directly from our website. You can also Contact Us by phone or email for any purchase
Protect Your Health and Your Ozone Generator
– Please use caution when operating an ozone generator
– Make sure to read your manual completely
– Limit exposure to ozone gas according to OSHA guidelines
– Keep liquids away from the ozone generator
