Easily Test Your Flow Rate
A2Z Ozone is now introducing a simple way to test the flow rate of your ozone generator.
Ozone Tester in mg/L
The A2Z Ozone Monitor is an ozone tester. It will determine the amount of ozone in milligrams per liter your ozone generator produces.
Improved Performance and Efficiency
This ozone monitor is a vast improvement over what is generally available on the market. It efficiently measures ozone, and we can offer it at a lower price because of its smaller size. The error margin is +/- 5%.
A2Z Ozone Monitor Will Fit Where You Need It
It also fits into most process setups, which makes your project easier to manage and maintain.
New Look!
Markings are now white-on-black, which are easier to read.
Simple Directions for Use:
As soon as you plug the A2Z Ozone Monitor / Ozone Analyzer into an electrical outlet, the unit turns on.
The A2Z Ozone Monitor / Ozone Analyzer takes about 120 seconds to completely initialize.

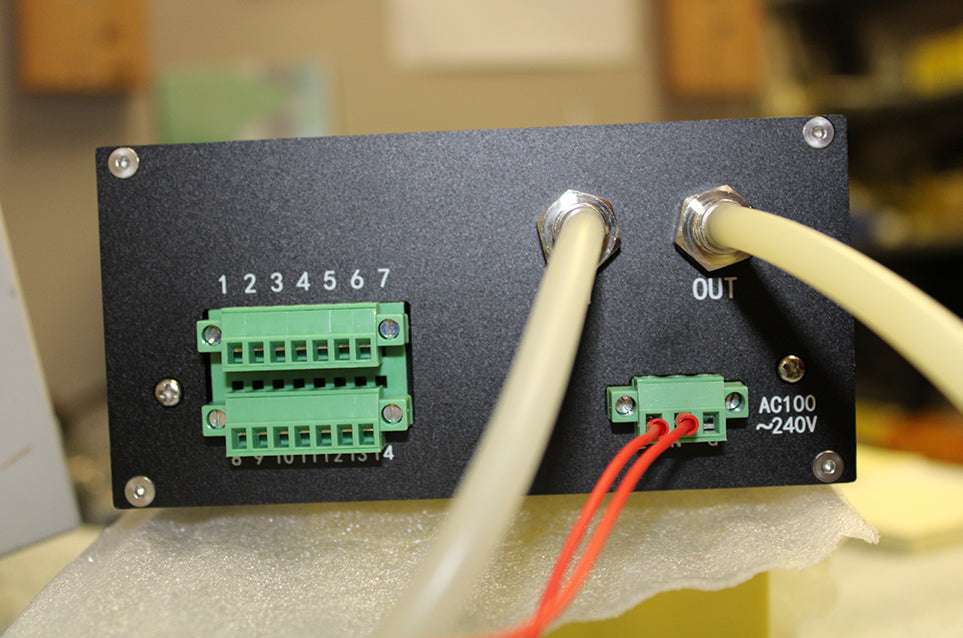

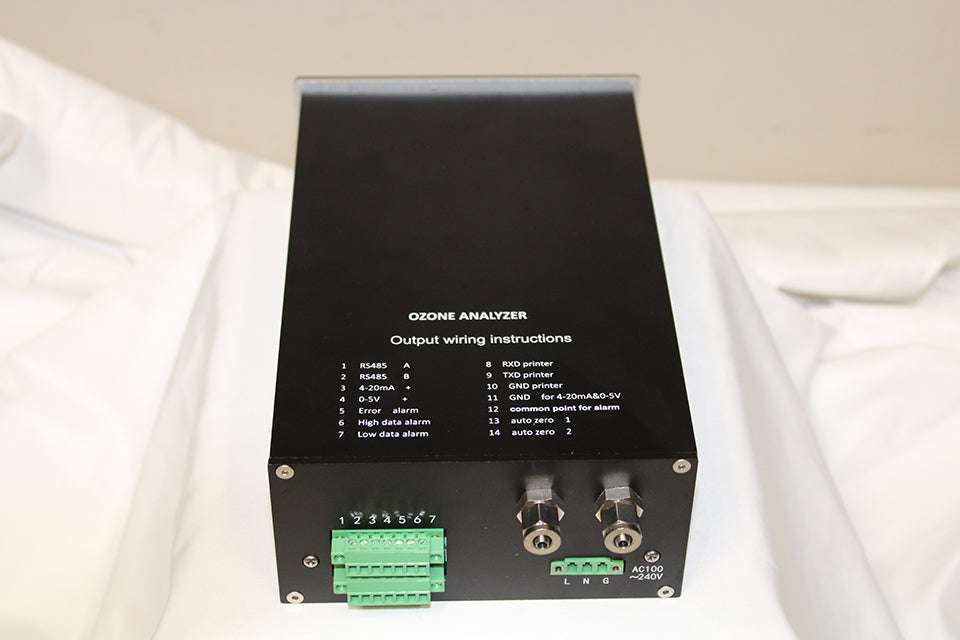

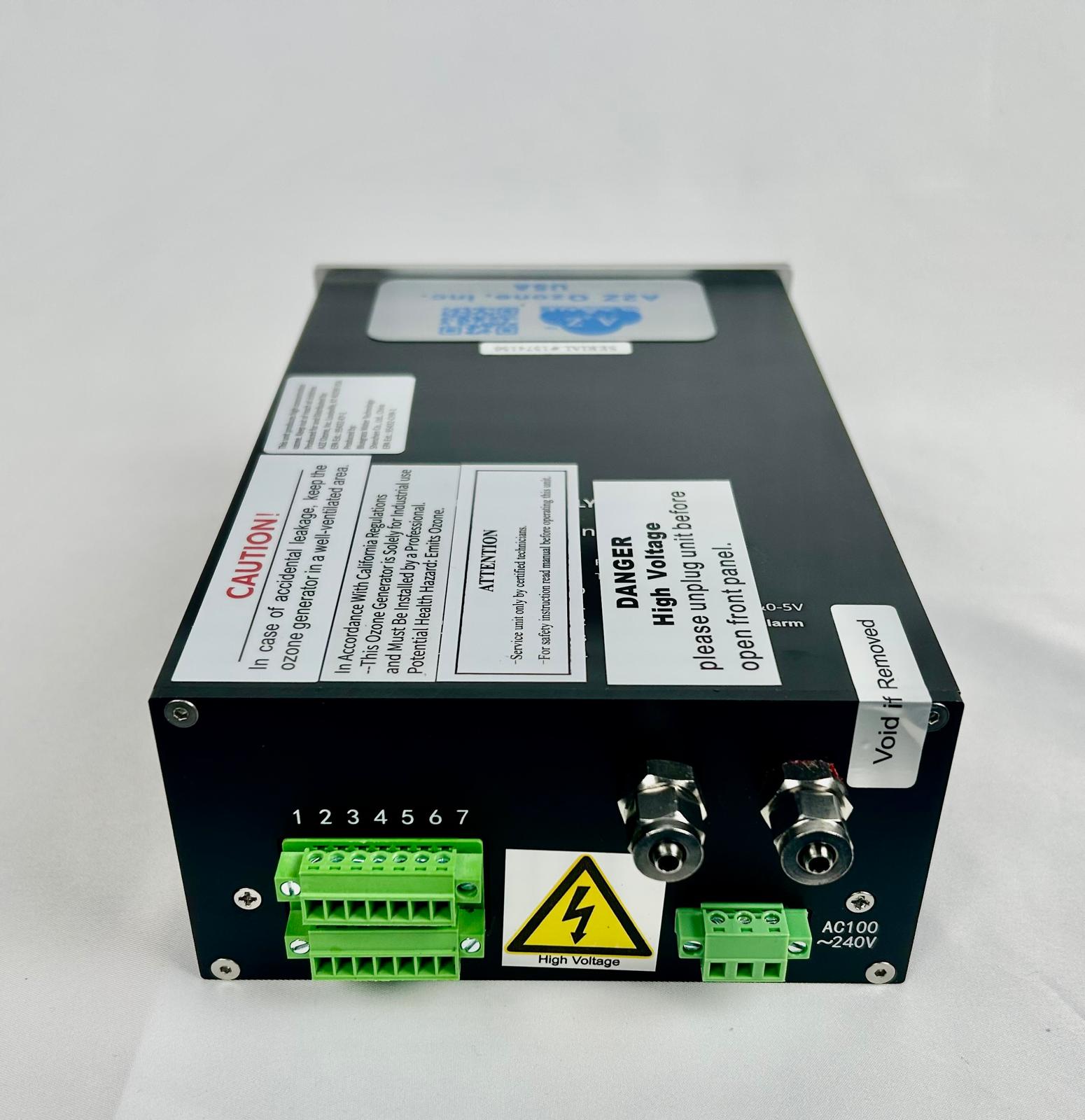

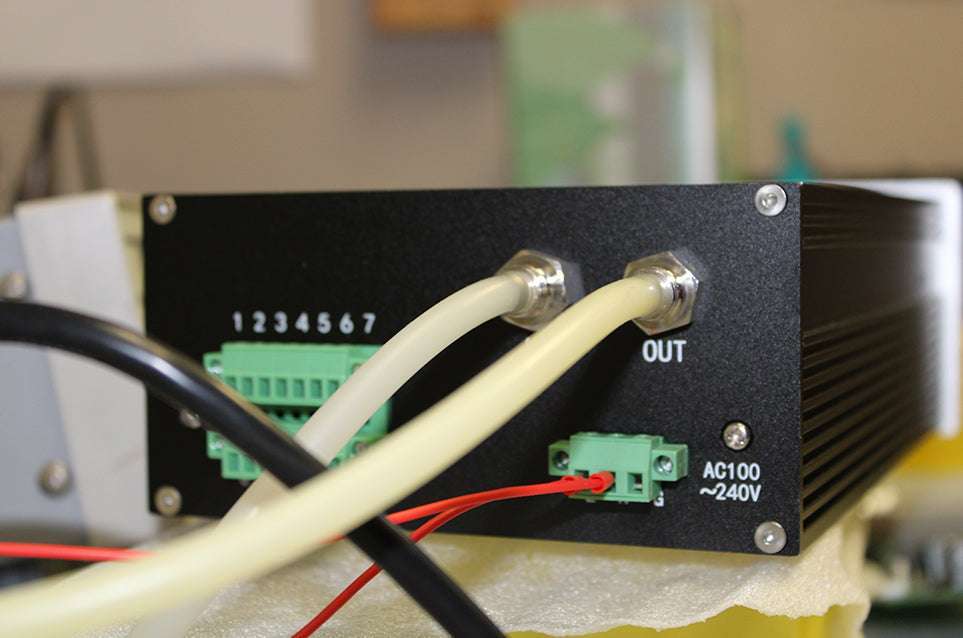

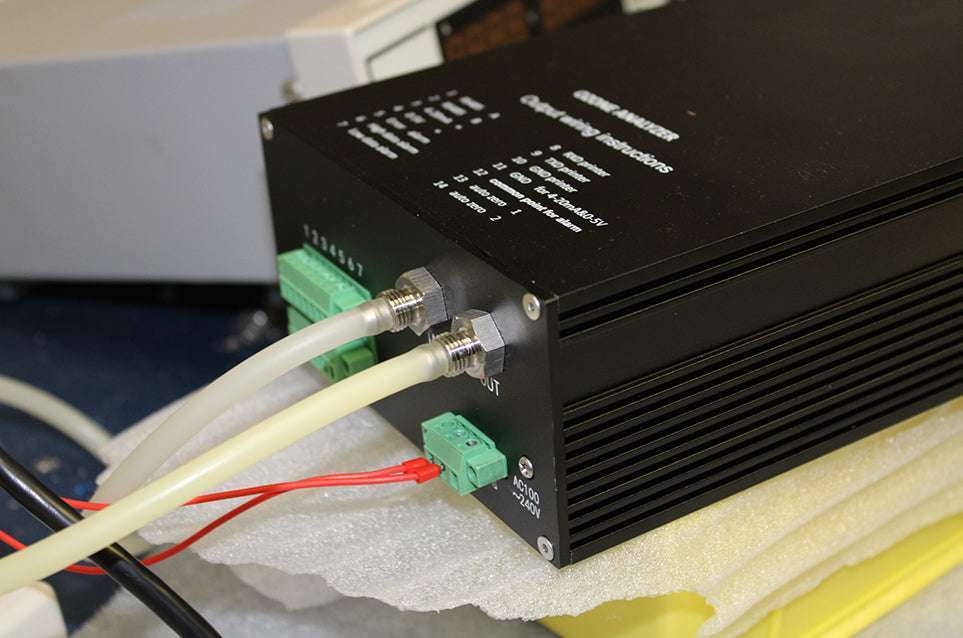

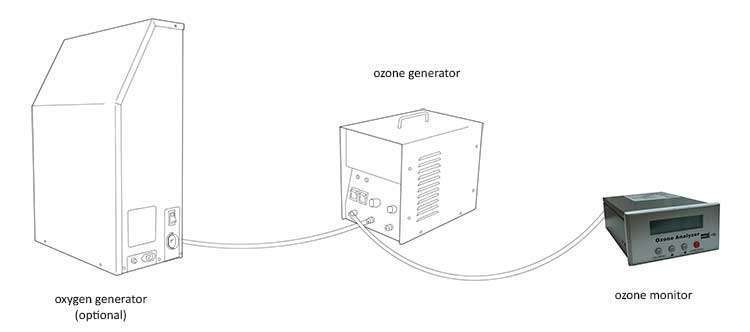

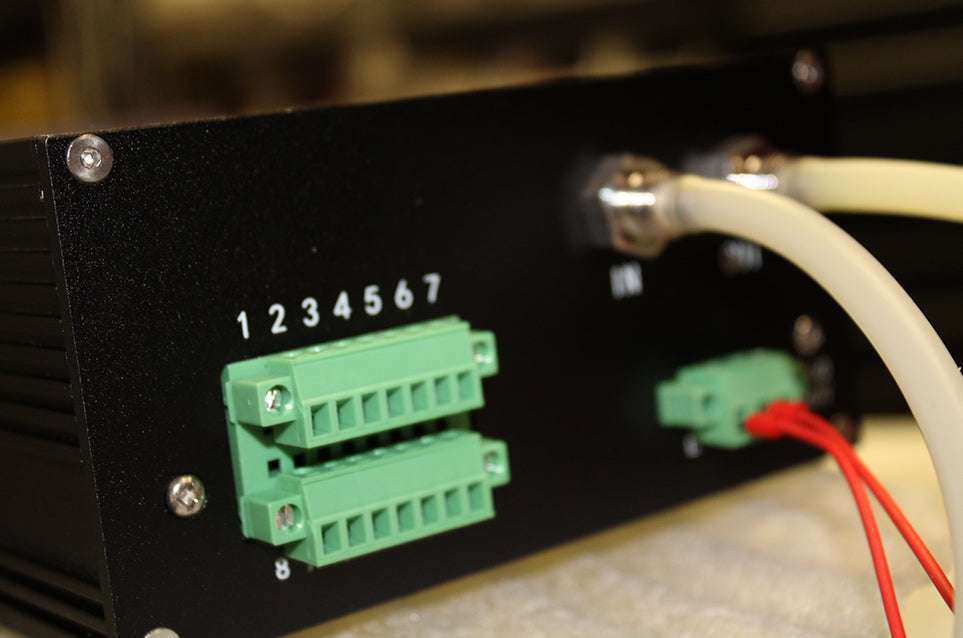

Attach PTFE tubing to the Ozone In port located on the back of the A2Z Ozone Monitor / Ozone Analyzer.

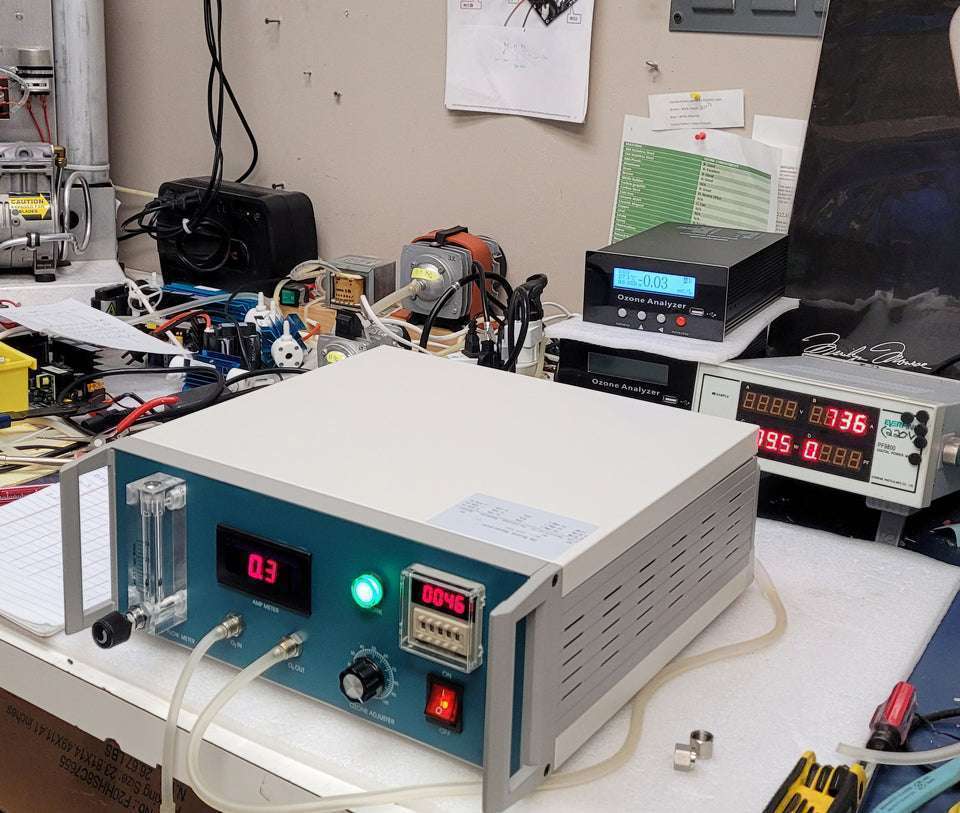

Attach the other end of this tubing to the Ozone Outlet on the ozone generator of your choosing.
To get the most accurate reading, zero out the A2Z Ozone Monitor / Ozone Analyzer with the red Enter/Zero button.

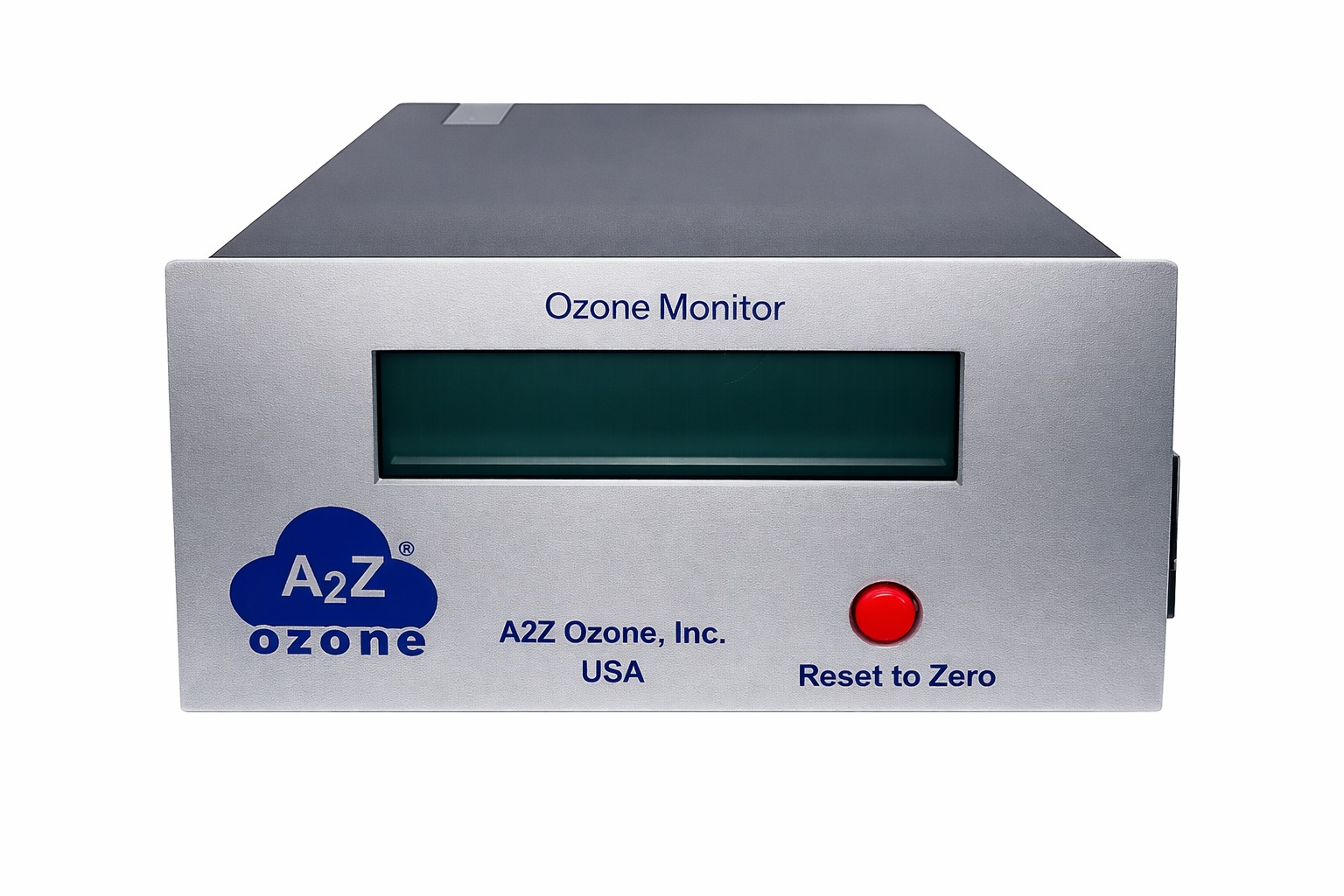

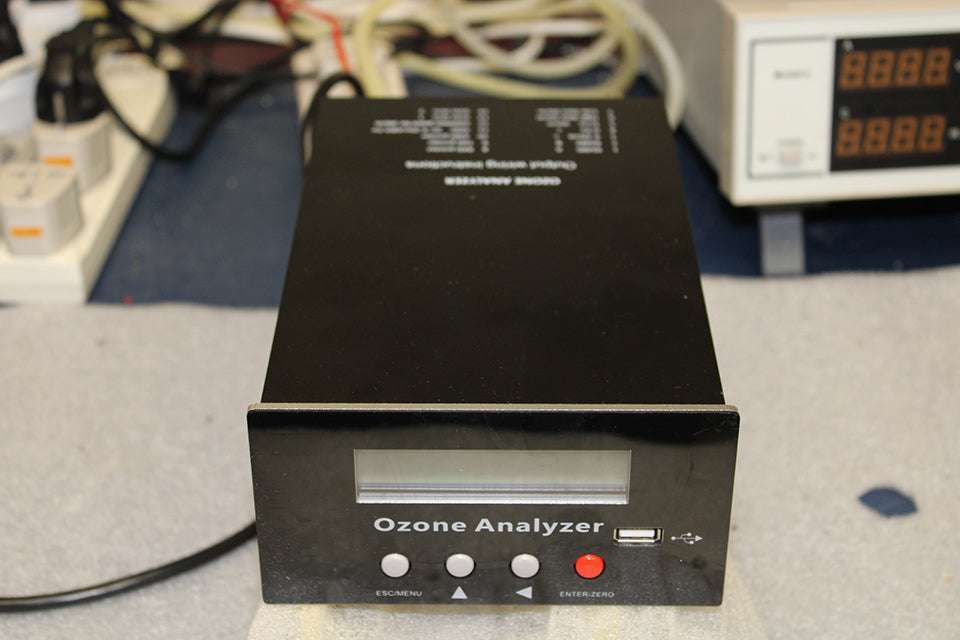

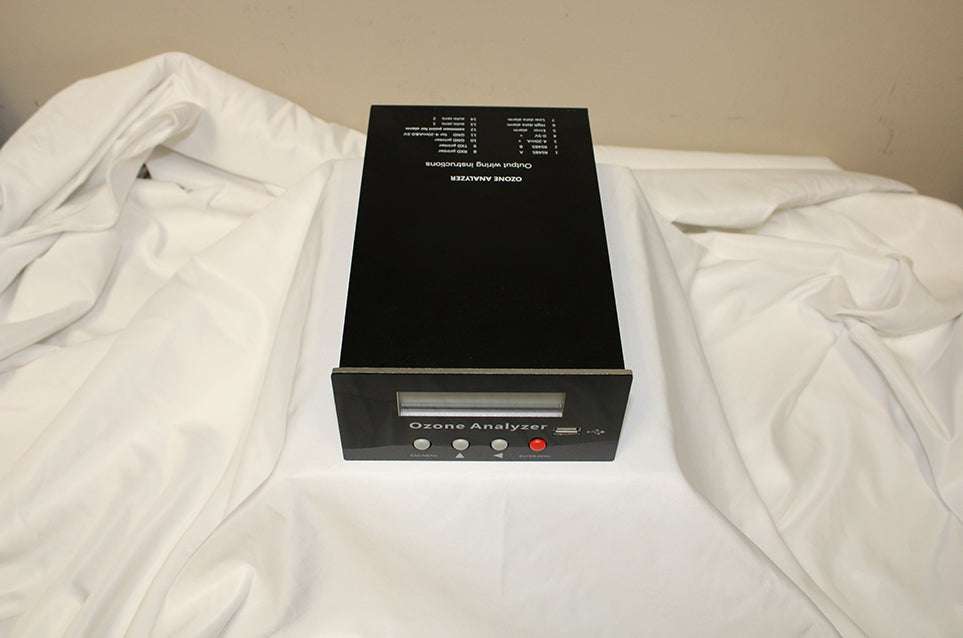

Find the red Enter/Zero button on the front of the monitor:
- Run the ozone generator unit through ambient air or oxygen source, depending on what reading you are trying to achieve.
- While the unit is on, press the red “Enter” button.
- Press “Enter” again after the unit beeps.
- Zero the monitor at 1 L/minute flow rate and then start the ozone generator to get accurate readings.
This meter is for reading purposes only.
Actual results are at a 1 liter/minute flow rate.
Use PTFE tubing for best results.
Calculations
mg/L x 1L/min x 60min/hour = mg/hour ozone output
ozone monitor reading at 1 LPM: reading 4.2 mg/L
4.2 mg/L x 1 L/min x 60min/h = 252 mg/h O3 output
Dimensions: 9 inches (L) x 5.5 inches (W) x 4 inches (D)
This monitor has a universal voltage between 110V to 240V.
