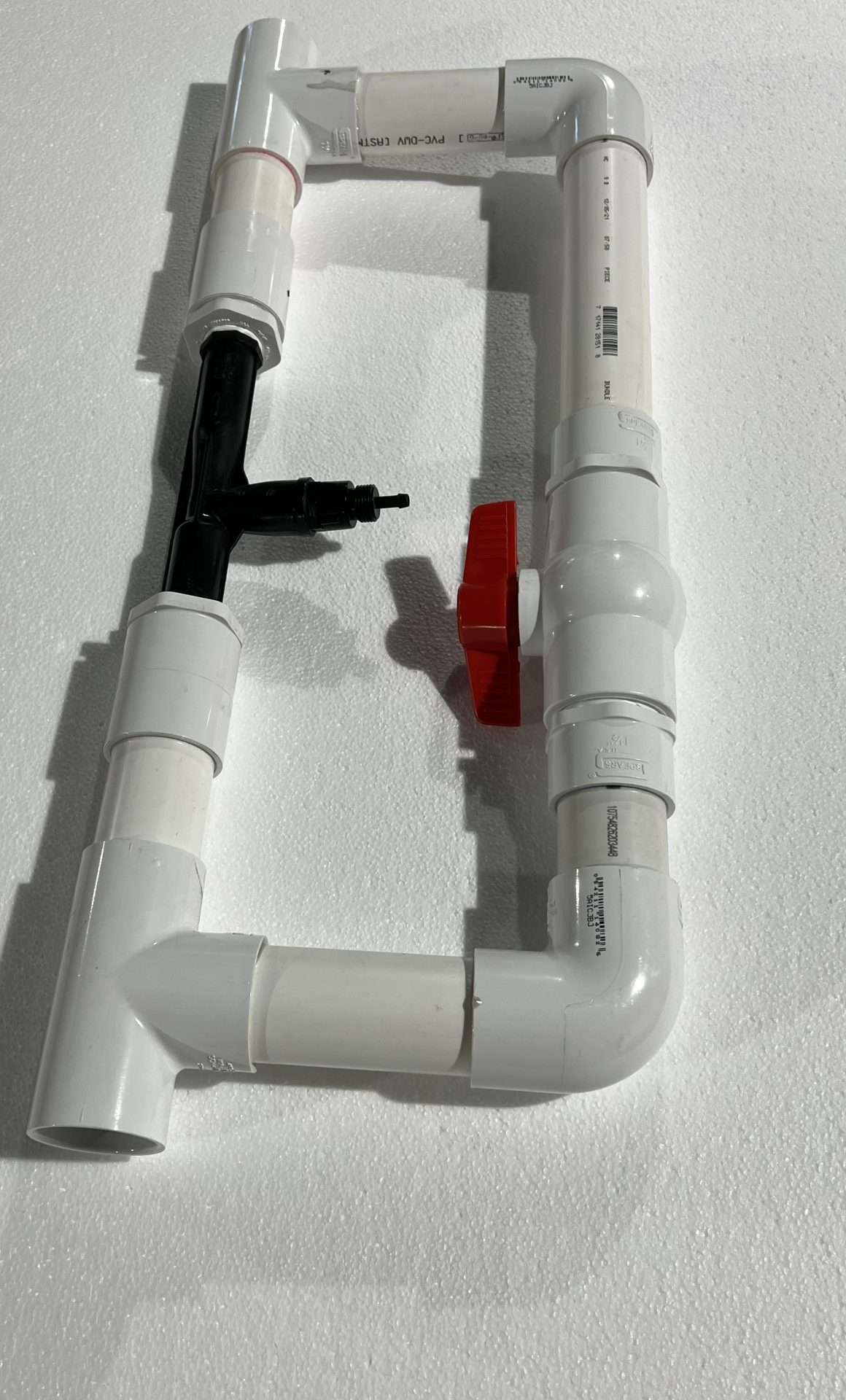

The Injector Manifold allows the pool’s plumbing to integrate with the ozone generator. It holds the venturi injector that does the ozone and water mixing. The manifold plumbs into the pool piping to create a vacuum. The vacuum pulls the gas into the water.
The Injector Manifold’s job is to efficiently bring those two systems together.
Since there are many ways to plumb a pool, A2Z Ozone offers several options for the Injector Manifold. For the most common sizes, we offer pre-built manifolds. We can also custom-build for you with a short 1 to 2 week turnaround. To get a custom manifold, please Contact Us.

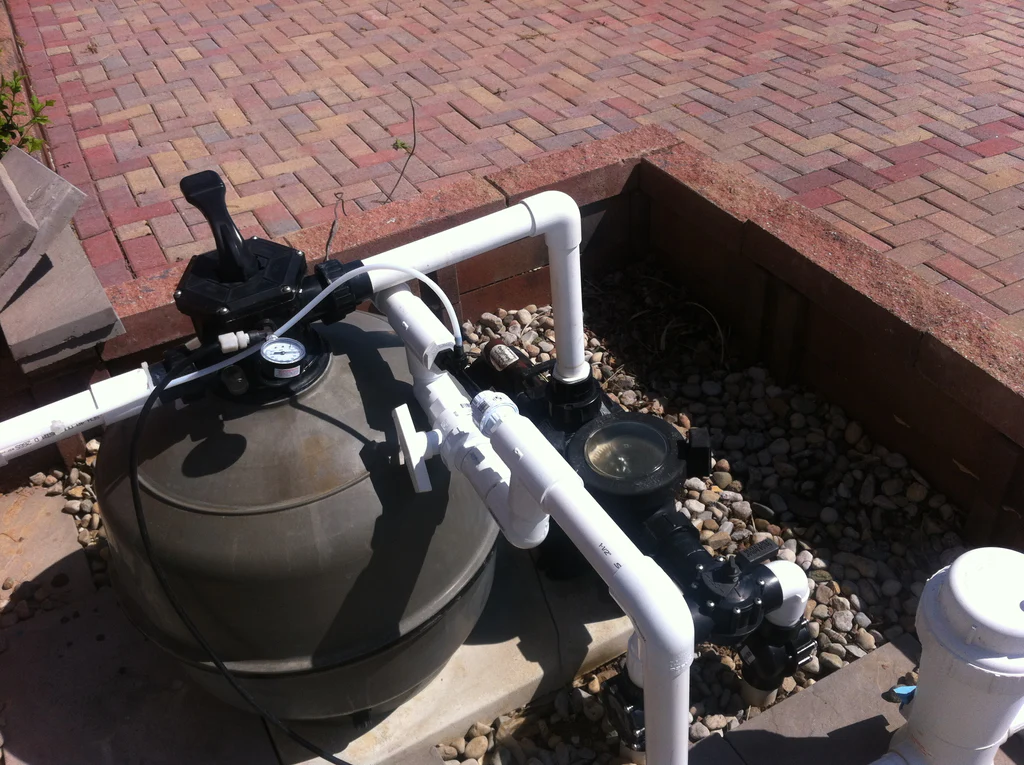

Manifold Set-up Used for a Backyard Salt Water Pool

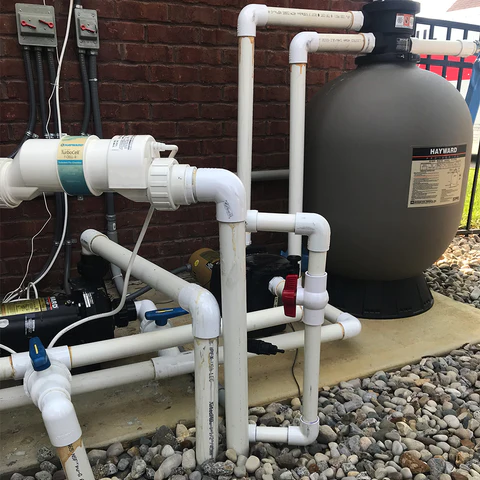

Side View of the Manifold
Injector Manifold Sizes Offered:

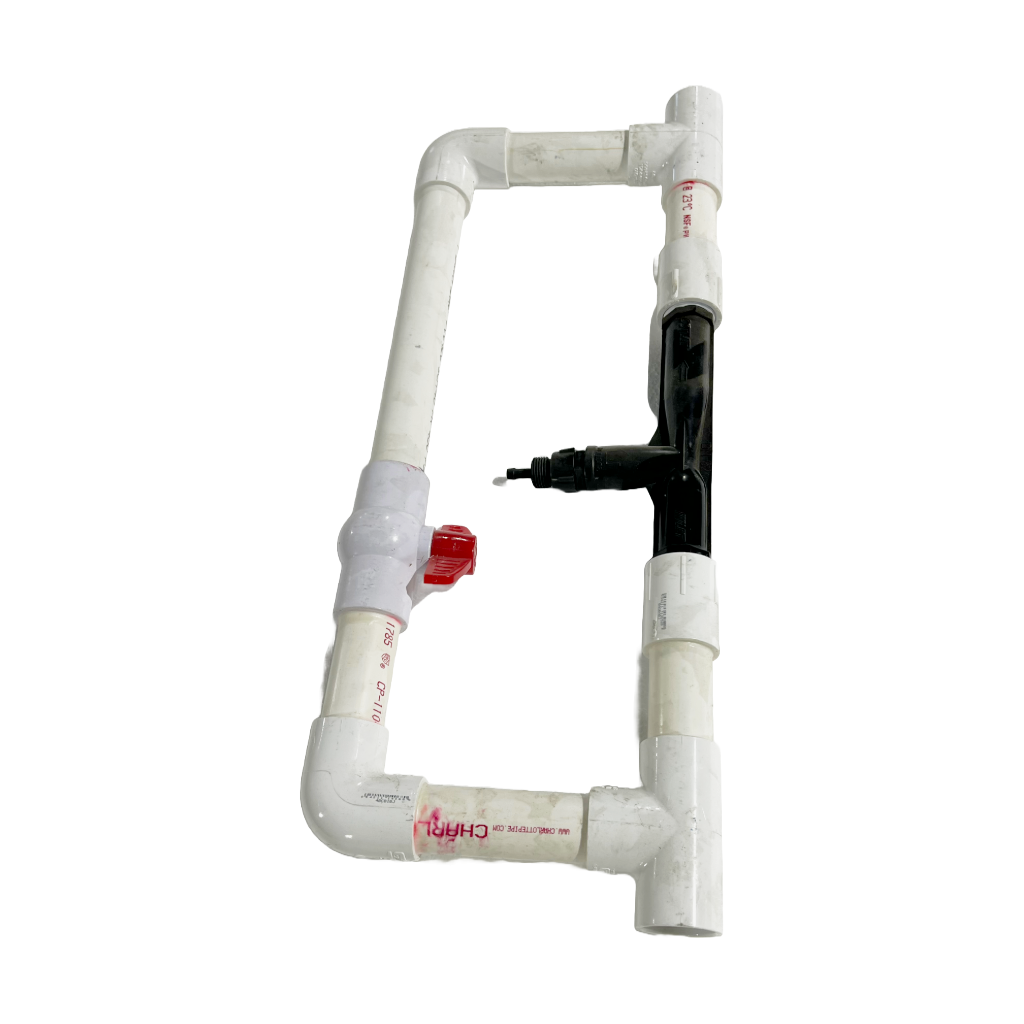

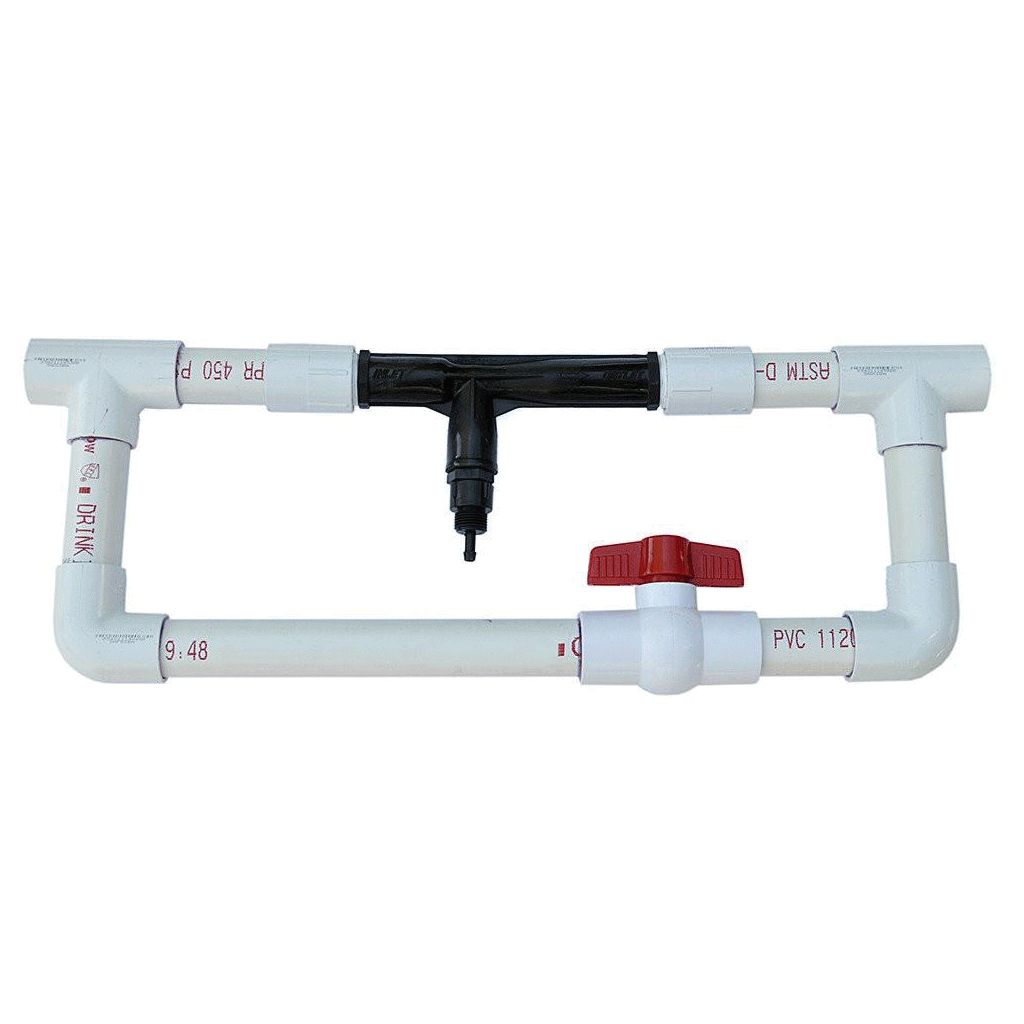

– 1″ Venturi Injector with 1″ Tubing
– 1″ Venturi Injector with 1.5″ Tubing
– 3/4″ Venturi Injector with 3/4″ Tubing
– Custom-Built Also Available
Note: The most common size is the 1″ Venturi Injector with 1″ Tubing. If in doubt, Contact Us. We are happy to help. Since we are not able to accept returns on the manifolds, it can save a lot of headaches to confirm the size you will need.
We may need 2 to 4 days to prep a manifold.
