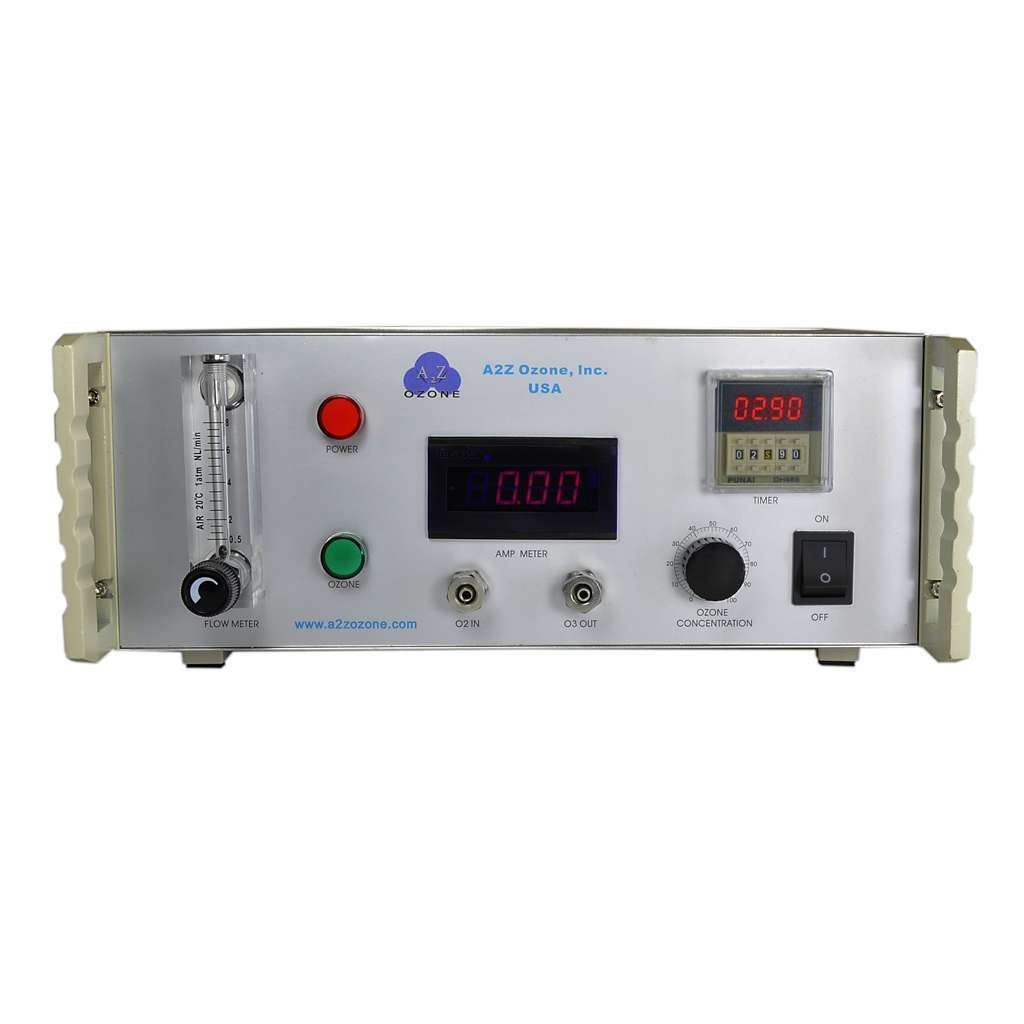

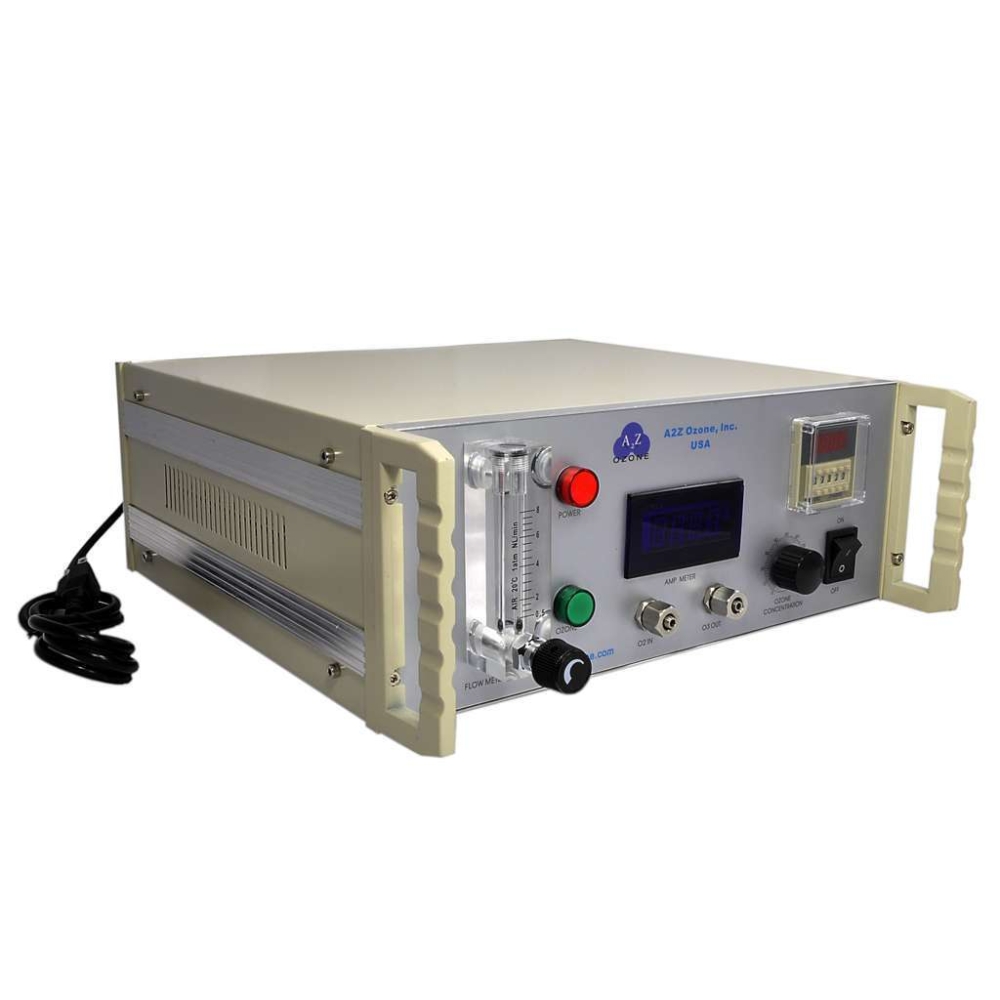

Name: Lab Benchtop Research Water Ozone Generators – maximum ozone outputs: 500 mg/hour to 5 g/hour
SKU: 1113
Availability: InStock

SKU: N/ACategory: Ozone GeneratorsTags: Air cooling for unit, Benchtop, BOD and COD measurements, Flow meter, flow meter with gauge, Lab Research, needs oxygen source, ozonolysis, pharmaceutical, precision control, science research, university

Lab Benchtop Research Water Ozone Generators – maximum ozone outputs: 500 mg/hour to 5 g/hour

No customer reviews yet

Price range: $ 1,475.99 through $ 3,229.00 -10%

Select Plug Type Based on Country

Select the Desired Max. Ozone Capacity (g/hour)

Clear

SKU: N/A Category: Ozone Generators Tags: Air cooling for unit, Benchtop, BOD and COD measurements, Flow meter, flow meter with gauge, Lab Research, needs oxygen source, ozonolysis, pharmaceutical, precision control, science research, university

NOTE: All Lab Benchtop Research Water Ozone Generators require an oxygen source to operate. See the Additional Considerations tab for more information.

NOTE to Businesses, Universities, and Government customers: If your department needs a formal, fast quote, send your request through email at [email protected]. Please include the product of interest, quantity, your contact information and your shipping address.

International Customers: We ship internationally. Contact Customer Service for all international orders: +1-502-499-4977, Option 1; or at the email address above.

Applications Specifications Features Included with Purchase Additional Considerations Related Parts Share this Page

Previous Next

Applications for A2Z Ozone’s Lab Benchtop Water Research Ozone Generator include ozonolysis. Scientists use the benchtop ozone generator with any type of chemical manufacturing process. Ideal for the pharmaceutical industry, A2Z Ozone’s Lab Series assists in medical research. Universities and companies rely on the A2Z Ozone Lab Series to support the high level of precision they need for accurate results.

For information about applications, technical walkthroughs and how-to’s, read our blogs and check out our YouTube channel. @AtoZOzone

Technical Specifications Comparison Chart (For ozone concentration adjusted at different oxygen flow rates, see initial calibration sheet sent with the lab benchtop. The information in the table below is approximate.)

Model	Max. Ozone Capacity	Oxygen Feed Flow Rate	Ozone Concentration (Adjustable)	Energy Usage
0.05 Lab Benchtop	500 mg/hour	1.5 LPM	1-20 mg/m3	35W
1G Lab Benchtop	1000 mg/hour	0-3 LPM	1-38 mg/m3	43W
2G Lab Benchtop	2000 mg/hour	2 LPM	1-70 mg/m3	40W
3G Lab Benchtop	3000 mg/hour	1.25 LPM	4-60 mg/m3	60W
4G Lab Benchtop	4000 mg/hour	1.5 LPM	8-48 mg/m3	80W
5G Lab Benchtop	5000 mg/hour	1.75 LPM	2.2-75 mg/m3	100W

NOTES:

To get a stable ozone output, run the Lab Benchtop Ozone Generator for 10 minutes before ozonation.
The Lab Benchtop may produce about 2%-7% higher or lower ozone concentration in the first 10 minutes.
The Lab Benchtops only work with oxygen input of 2-4 psi. (It does not work with ambient air.)
The oxygen flow rate is between 1/8 to 2 LPM.

Trust A2Z Ozone’s 20+ years to deliver a high-quality research ozone generator. Low maintenance provides specialists more time to draw conclusions in their research.

Ozone-resistant parts for longevity
Pre-installed fittings to ensure fast and easy set-up
Controls of both input and output allow for top management of any application
Adjust oxygen with flow regulator on benchtop ozone generator
Vary ozone concentration with the potentiometer
Fault warning LED signals ozone production needs attention

Corona Discharge Technology	Variable Ozone Output Controls	Cooling Requirement--Air	Adjustable Flow Meter	LED Status Indicators
0-0.9 mA Panel Meter	Stainless Steel Ozone Resistant Outlets	PTFE, Quartz Glass, and Ceramic Tubes	Ozone Resistant Materials	Precision Control

Barb Sizes:	Ozone Out: 1/4" Stainless Steel Barb	Air Out: 1/4" FNPT	Oxygen In: 1/4" Stainless Steel Barb
Dimensions/Weight:	110VAC: 24 Pounds, 18x18x10 Inches	220VAC: 20 Pounds, 18x18x10 Inches

Initial ozone calibration chart and table showing ozone levels achieved at various oxygen inputs — performed by official A2Z Ozone Technicians (A $200 value!)
8 feet PTFE hard tubing, ID 1/4″, OD 5/16″ (Ozone Out)
8 feet silicone flexible tubing (for Oxygen In only)
English User’s Manual (manuals also available in French, German, Italian, Portuguese, and Spanish — please contact us with your request)
1-year parts and service warranty

Lab Benchtop Ozone Generators must have an oxygen source to operate. For convenience and precision, an oxygen generator, or concentrator, is the ideal choice. Purchase one from us to ensure you get a high-quality oxygen generator for use with your Lab Benchtop.

Recommended Oxygen Source for the Lab Benchtop:
Oxygen Generator:

Topaz Oxygen Generator
(Ozone Generators with maximum output of 1G to 16G)
Keep the Lab Benchtop’s Calibration Schedule Up-to-Date
For accuracy, we recommend a calibration every six months. Contact Us for an appointment
Only use official A2Z Ozone Replacement Parts and Accessories
Purchase these directly from our website. You can also Contact Us by phone or email for any purchase

Protect your health and your ozone generator.
– Please use caution when operating an ozone generator
– Make sure to read your manual completely
– Limit exposure to ozone gas according to OSHA guidelines
– Keep liquids away from the ozone generator

Feel free to Contact Us with any questions

Scientists, manufacturers, and specialists rely on their equipment for applications requiring precise results. That means selecting the right ozone generator for major projects is paramount. A2Z Ozone’s Lab Benchtops are the perfect addition to any set-up requiring low flow rates. Meet lab space requirements with the compact size of the benchtop ozone generator. Our users enjoy the peace of mind that their ozone generator is long-lasting. All components are ozone-resistant.

Lab Benchtop Research Water Ozone Generator in use at University of Michigan

3g Lab Benchtop Research Water Ozone Generator in Use at the University of Michigan

Ozonolysis — One Way to use Ozone in Science, Chemical Research, and Industry

Ozonolysis is a method chemists use to replace carbon bonds with oxygen bonds. That allows chemists to see inside the structures of alkenes.

Ozonolysis makes some experiments faster and more efficient, or possible at all.

Chemists use ozonolysis to aid in the search for new ways to help with the removal of pollutants from water. Ozonolysis improves pharmaceutical research by assisting with synthesizing organic molecules.

To name a couple, ozonolysis plays a part in solar energy research and organic chemistry. Scientists are also looking at ways of modification of polymers and plastics.
