Like the lab benchtops, these ozone generators provide opportunities for ozonolysis. Other applications include cleaning water during procedures. That includes managing BOD (Biological Oxygen Demand) and COD (Chemical Oxygen Demand) measurements.
Depending upon the contaminants in the water, some customers consider the Lab Research Water Ozone Generator for wastewater treatment.
Model | Max. Ozone Capacity | Oxygen Feed Flow Rate | Ozone Concentration (Adjustable) | Energy Usage |
6G Lab | 6 g/hour | 3 LPM | 0-65 g/m3 | 110W |
10G Lab | 10 g/hour | 4 LPM | 0-65 g/m3 | 190 W |
16G Lab | 16 g/hour | 5 LPM | 33-55 g/m3 | 180W |
NOTES:
- To get a stable ozone output, run the Lab Benchtop Ozone Generator for 10 minutes before ozonation.
- The Lab Benchtop may produce about 2%-7% higher or lower ozone concentration in the first 10 minutes.
- The Lab Benchtops only work with oxygen input of 2-4 psi. (It does not work with ambient air.)
- The oxygen flow rate is between 1/8 to 2 LPM.

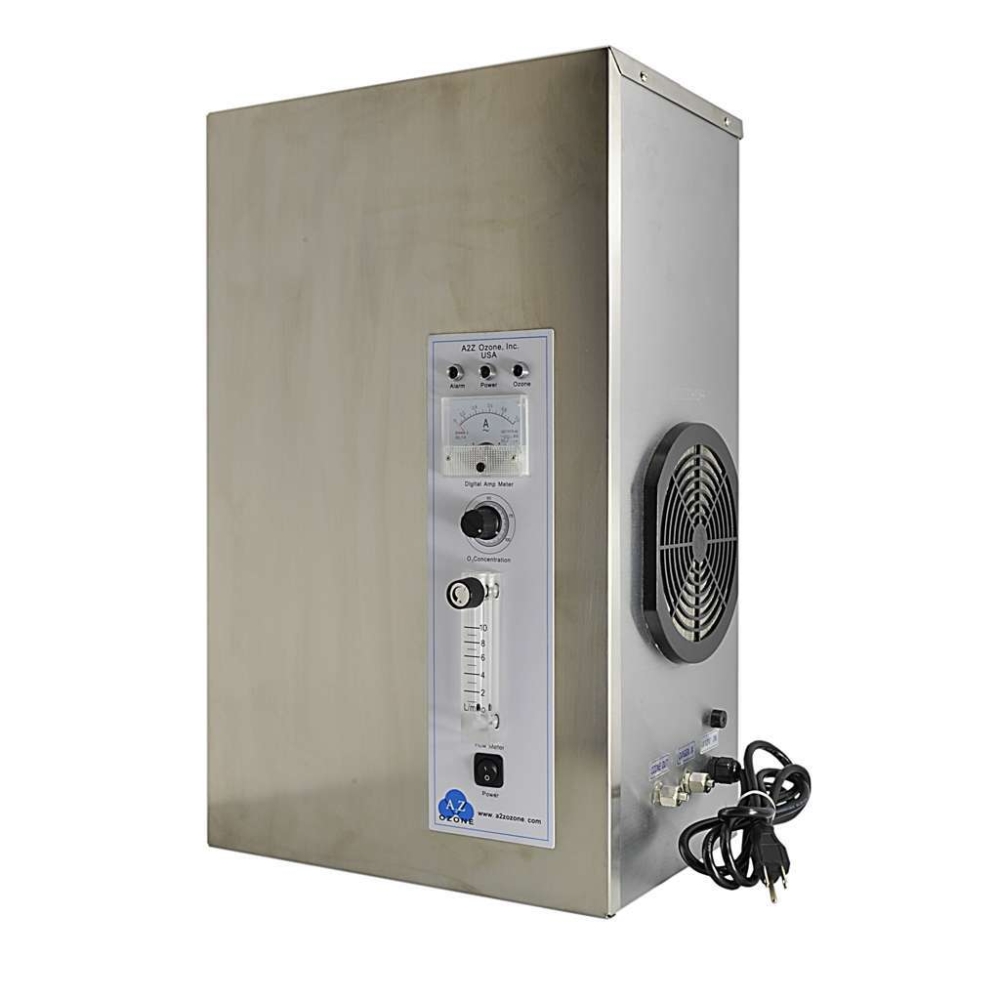

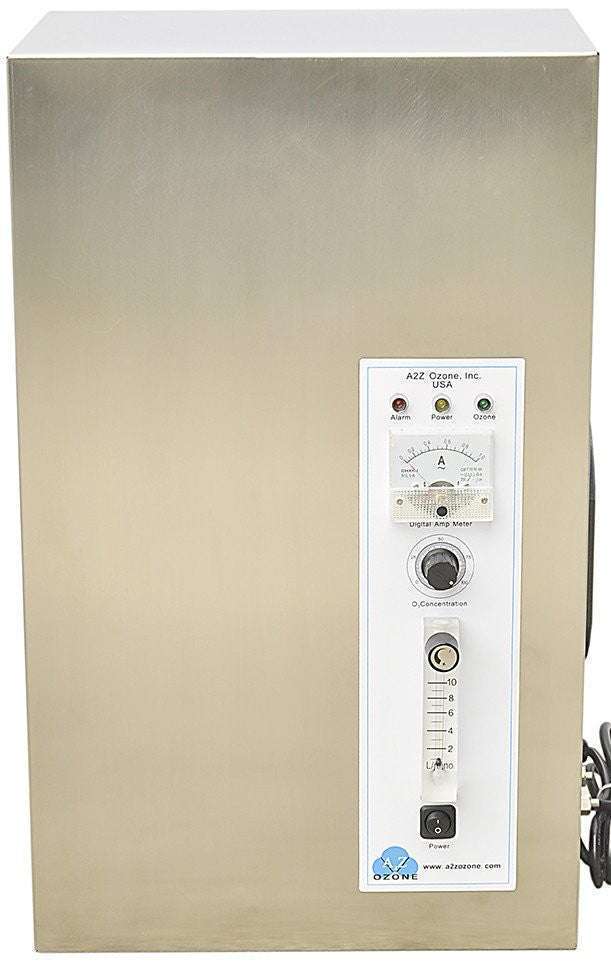

The Lab Research Water Ozone Generators have most of the same features as the Lab Benchtops. They are reliable in research environments. These ozone generators are larger and more powerful than the Lab Benchtops.
Some Universal Features for the Lab Research Water Ozone Generators

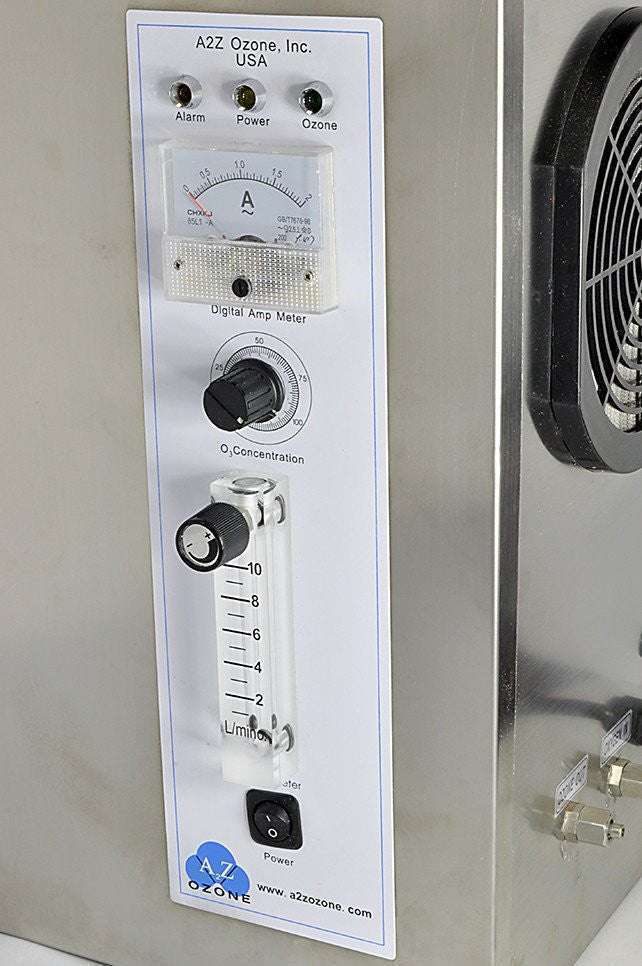

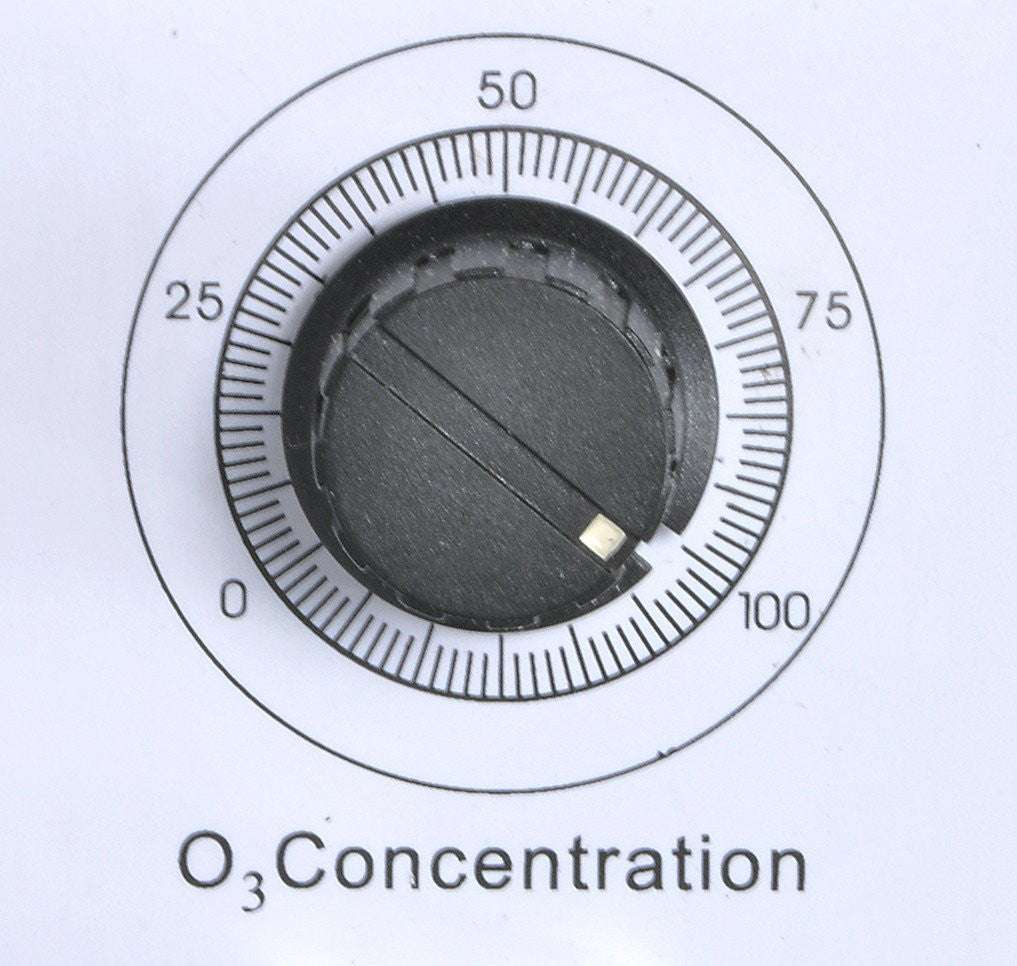

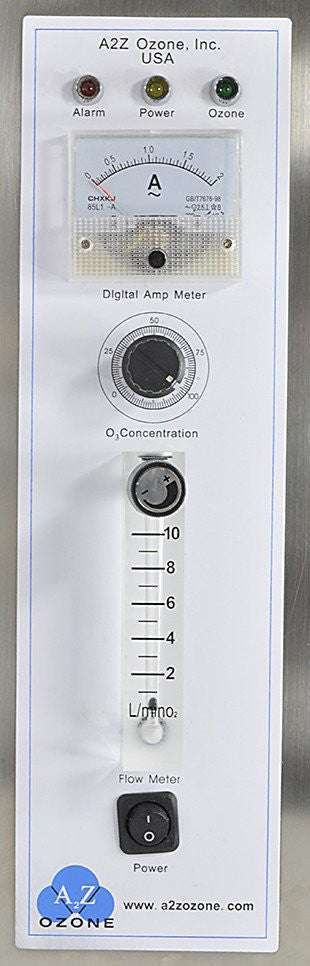

Corona Discharge Technology | Variable Ozone Output Controls | Cooling Requirement--Air | Adjustable Flow Meter | LED Status Indicators |
Built for Longer Runtimes | Low Maintenance Requirement | Easy Set-Up | Easy Operation | Fault Warning LED -- No Ozone |

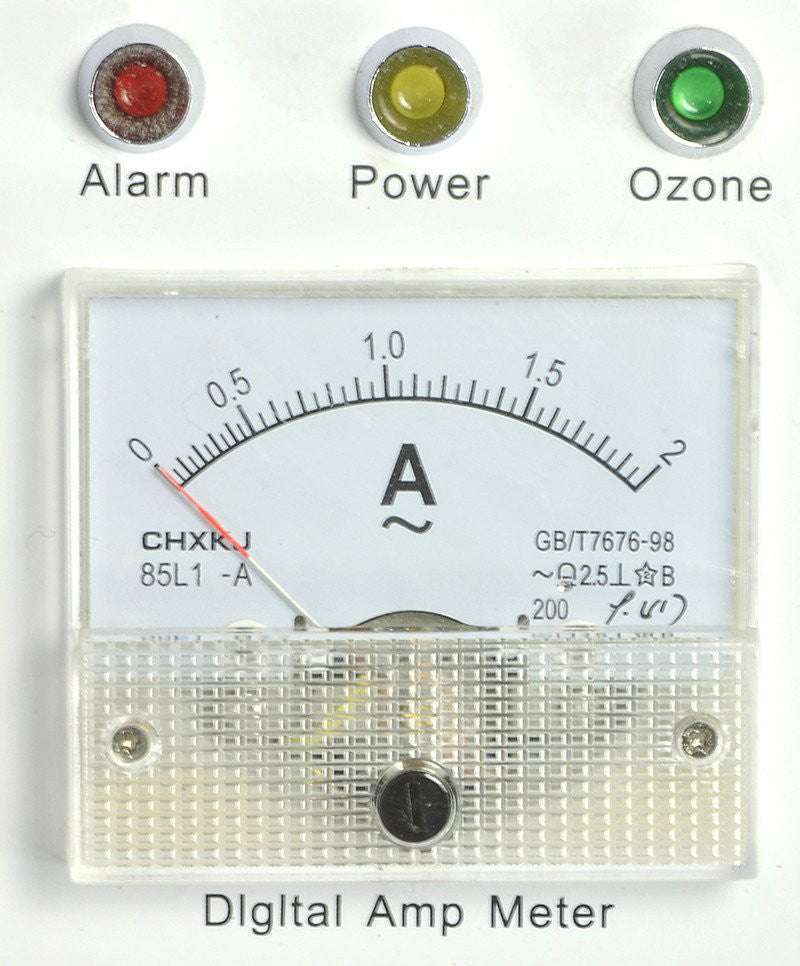

0-0.9 mA Panel Meter | Stainless Steel Ozone Resistant Outlets | PTFE, Quartz Glass, and Ceramic Tubes | Ozone Resistant Materials | Precision Control |
Some Universal Measurements for the Lab Research Water Ozone Generators
Barb Sizes: | Ozone Out: 1/4" Stainless Steel Barb | Air Out: 1/4" FNPT | Oxygen In: 1/4" Stainless Steel Barb |
Dimensions/Weight: | 110VAC: 30 Pounds, 26x16x14 Inches | 220VAC: 36 Pounds, 26x16x14 Inches |
- Initial ozone calibration chart and table reflecting values of ozone achieved at various oxygen inputs. Performed by official A2Z Ozone Technicians (A $200 Value!)
- 8 Feet PTFE hard tubing, ID 1/4″, OD 5/16″ (Ozone Out)
- 8 Feet silicone flexible tubing (for Oxygen In Only)
- English User’s Manual (Manuals are Also Available in French, German, Italian, Portuguese, and Spanish. Please Contact Us with Your Request
- 1-Year Parts and Service Warranty
A2Z Ozone’s Lab Research Water Ozone Generators require an oxygen source or an external air pump to operate efficiently as intended. Using an oxygen source increases the amount of ozone production to close to 100% and ensures a more pure form of ozone creation. Without oxygen, the generator produces about 1/5 of the ozone indicated. Plus, byproducts are produced with ambient air.
For your convenience, we sell oxygen generators at reasonable prices. These are the oxygen generators we know will work with our ozone generators.
Recommended Oxygen Source, Oxygen Generator Model:
Topaz Oxygen Generator
(Ozone output of 1G to 16G)
For Best Results, Keep the Lab Research Water Ozone Generator’s Calibration Schedule Up-to-Date
Calibrate every six months. Order online or Contact Us for an appointment
Only Use Official A2Z Ozone Replacement Parts and Accessories
Purchase these directly from our website. You can also Contact Us by phone or email for any purchase
Protect Your Health and Your Ozone Generator
- Please use caution when operating an ozone generator
- Make sure to read your manual completely
- Limit exposure to ozone gas according to OSHA guidelines
- Keep liquids away from the ozone generator
Contact Us with any questions
Desktop: right click QR code with mouse and choose Share.
Cell Phone: Hold finger on QR code until it shows menu to share.
In most cases, you can also scan the code with another device.
A2Z Ozone’s Lab Research Water Ozone Generators allow more ozone output than the benchtops. These units produce as much ozone as some of the S-Series Industrial Water Ozone Generators. And they do not sacrifice the precision a laboratory requires. They can accommodate a much lower flow rate than an industrial ozone generator. Like the benchtops, A2Z Ozone designs the lab units with ozone-resistant, long-lasting components
