Most installations of the S-50G treat wastewater, especially for recycling. These applications use an immense amount of water and proper recycling is essential.
Ozone Capacity: 50 G/hour
Electrical: 110V/120V, 220V/240V; 50/60 Hz
Ozone Concentration: 39-65 g/m3
Cooling Requirement: Water
Water Cooling Flow Rate: 0.5 to 2 GPM (Rate depends on water and room temperature)
Oxygen Feed Flow Rate: 12 LPM, 25.5 SCFH
Energy Wattage: 660W
Dimensions: 32x16x44 inches
Weight: 125 pounds, 57 KG
S-50G Industrial-Enhanced Water Ozone Generator Features
Corona Discharge Technology | Variable Ozone Output Controls | Cooling Requirement--Water | Adjustable Flow Meter | LED Status Indicators |
Built for Longer Runtimes | Low Maintenance Requirement | Easy Set-Up | Easy Operation | Fault Warning LED -- No Ozone |

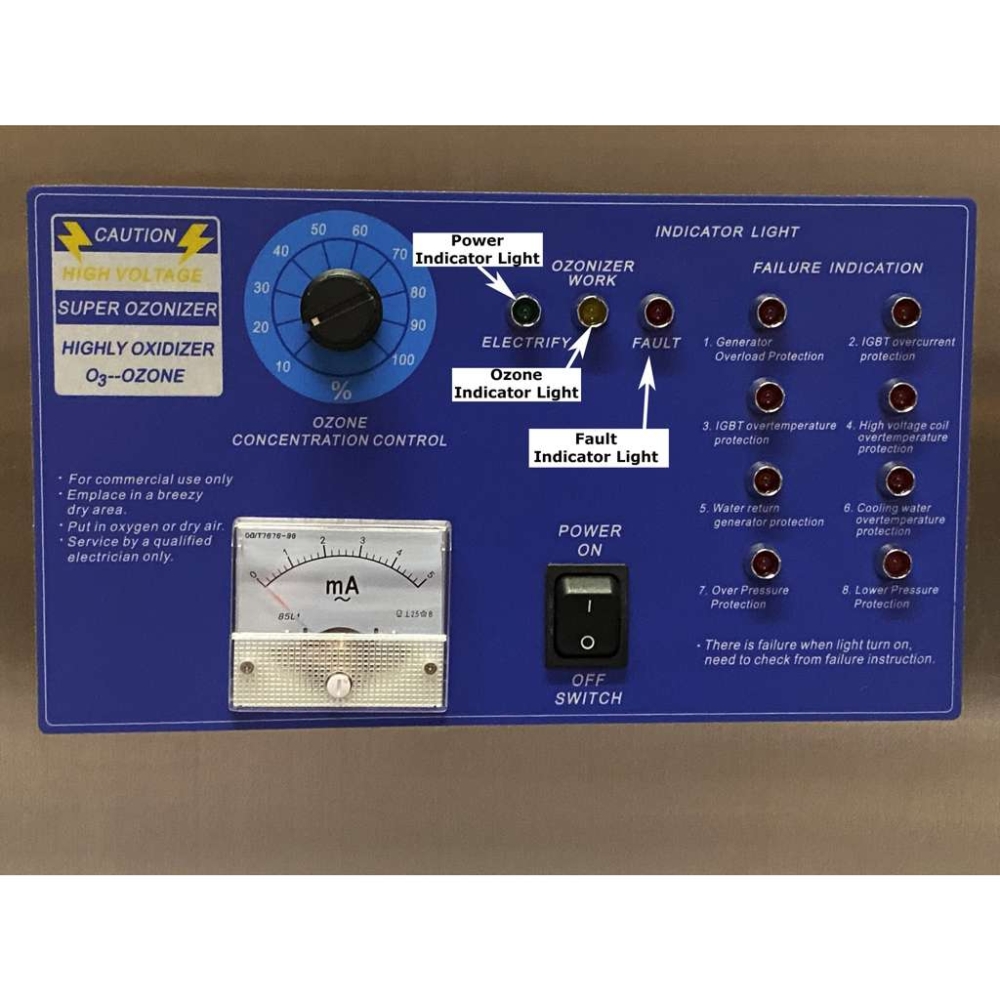

0-0.9 mA Panel Meter | Stainless Steel Ozone Resistant Outlets | PTFE, Quartz Glass, and Ceramic Tubes | Ozone Resistant Materials | Precision Control |
- English User’s Manual (Manuals are Also Available in French, German, Italian, Portuguese, and Spanish. Please Contact Us with Your Request)
- 8-Feet PTFE Tubing (Ozone Out)
- 8-Feet Silicone Tubing (Oxygen)
- 1-Year Parts and Service Warranty
Check the Additional Considerations tab for recommended items not included with the purchase.
Questions to Consider when Choosing an Industrial Ozone Generator
Determine the approximate ozone concentration you need
- What is the application?
- How much water are you treating?
- What are the contaminants of the water?
- What are the conditions? Humidity?
- Will you use oxygen?
- What is the flow rate?
If you need help, gather as much information as you can about the application and Contact Us.
Oxygen
The S-50G requires oxygen. We recommend using two Topaz Ultra Oxygen Generators.
