SP-Series Swimming Pool Ozone Generators, Ozone Output from up to 3 g/hour to 16 g/hour

SKU: N/ACategory: Tags: , , , , , , , , , , , , , ,

SP-Series Swimming Pool Ozone Generators, Ozone Output from up to 3 g/hour to 16 g/hour

Price range: $ 375.00 through $ 975.00 -21%

SKU: N/A Category: Tags: , , , , , , , , , , , , , ,

A Few Features and Benefits of Owning the Aqua-6 Ozone Generator

  • Corona discharge – considered the most reliable ozone technology by most users
  • 120 mg/hour ozone output – enough for most household applications
  • 15-Setting Function Timer – provides repeat functions
  • Lightweight — portable or wall-mountable for convenience
  • Easy to use – the best place to start is with the Aqua-6

Note:
All SP-Series Swimming Pool Ozone Generators require an external pump or oxygen generator. All SP-Series models are not waterproof and require protection from the elements.

NOTE to Businesses, Universities, and Government customers: If your department needs a formal, fast quote, send your request through email at [email protected]. Please include the product of interest, quantity, your contact information and your shipping address.

International Customers: We ship internationally. Contact Customer Service for all international orders: +1-502-499-4977, Option 1; or at the email address above.

ApplicationsSpecificationsFeaturesIncluded with PurchaseAdditional ConsiderationsRelated PartsShare this Page
PreviousNext

Some Applications for the SP-Series from Our Customers

  • Ponds and Fountains

    We have installations of the SP-Series at ponds and fountains. Customers tend to try out ozone with the SP-Series before moving on to the industrial ozone generators.

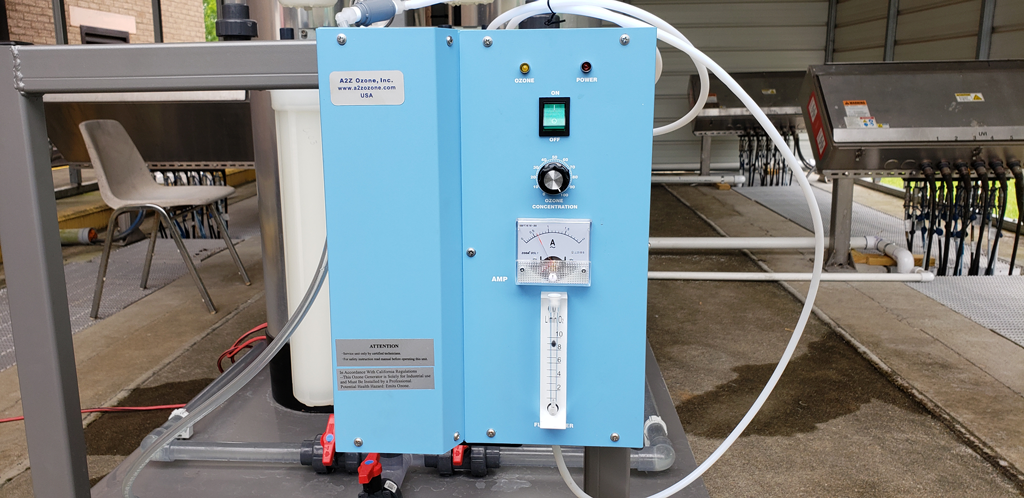

  • Light-Duty Wastewater Treatment

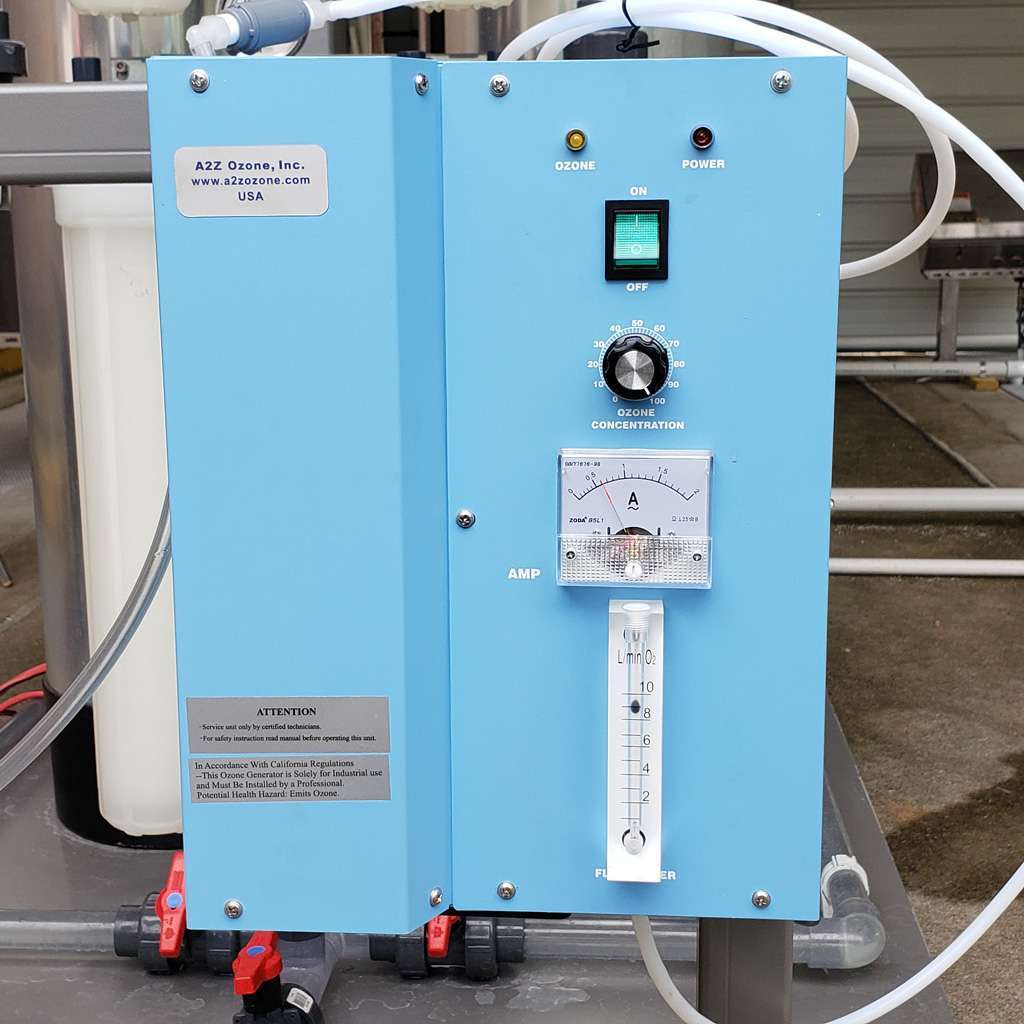

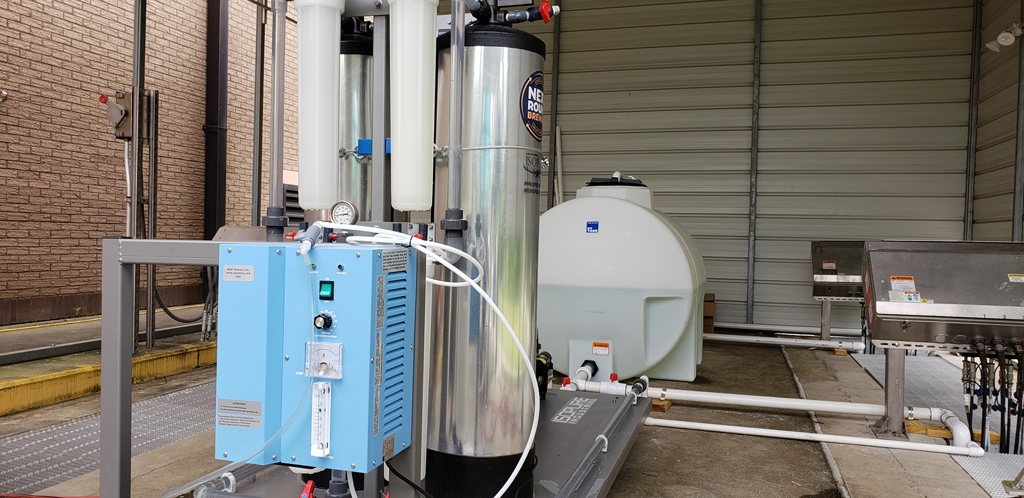

    This installation was for a contest of beer brewers. With a combination of several wastewater-cleaning technologies, the brewers successfully used local wastewater to make beer. A2Z Ozone’s SP-16G Ozone Generator provided ozone for part of the process. A2Z Ozone attended the Water For Life event and sampled the beers. They were delicious!
    For more information, see blog post about the wastewater treatment–Louisville MSD Joins Next Round Brewing and A2Z Ozone in Water Treatment

  • Personal Backyard Swimming Pool Installations

    The SP-Series was designed to enhance swimming pools.

Model

Max. Ozone Output without Oxygen

Max. Ozone Output

Oxygen Feed Flow Rate

Ozone Concentration (Adjustable)

Energy Usage

SP-3G

600 mg/hour

3 g/hour

6 SCFH, 3 LPM

0-25g/m3

80 W

SP-5G

1000 mg/hour

5 g/hour

7.2 SCFH, 3.6 LPM

 0-45g/m3

95 W

SP-8G

1600 mg/hour

8 g/hour

8 SCFH,  4 LPM

30-50 g/m³

110 W

SP-16G

3200 mg/hour

16 g/hour

4 LPM

25-45 g/m3

190 W

Corona Discharge Technology

Variable Ozone Output Control

Cooling Requirement--Air

Built for Longer Runtimes

Low Maintenance Requirement

LED Status Indicators (Ozone, Power)

Needs Either an External Air Compressor or Oxygen Supply

Stainless Steel Ozone Resistant Frame, Outlets

Ozone Resistant PTFE, Quartz Glass, and Ceramic Tubes

Dimensions:

SP-3G: 18x12x15 inches; Weight: 18 pounds

SP-5G: 18x12x15 inches; Weight: 18 pounds

SP-8G: 18x12x16 inches; Weight: 20 pounds

SP-16G: 22x12x19 inches; Weight: 30 pounds

  • English User’s Manual (manuals available in Spanish upon request, or get a PDF version of the Spanish manuals)
  • Flexible tubing (for oxygen supply) ID 1/4″, OD 5/16″
  • PTFE tubing (for ozone) ID 1/4″, OD 5/16″
  • Spare fuse
  • Check valve (x2)
  • Spare fan filter
  • 1-Year Parts and Service Warranty

NOT Included:
Venturi Injector
Manifold
Mounting Hardware
Protective Cover
Oxygen Generator or External Air Pump

Note: The SP-Series Ozone Generators are not built with internal pumps.

We recommend the AirSep brand of Oxygen Generators. The Onyx or Topaz works well with the SP-Series.

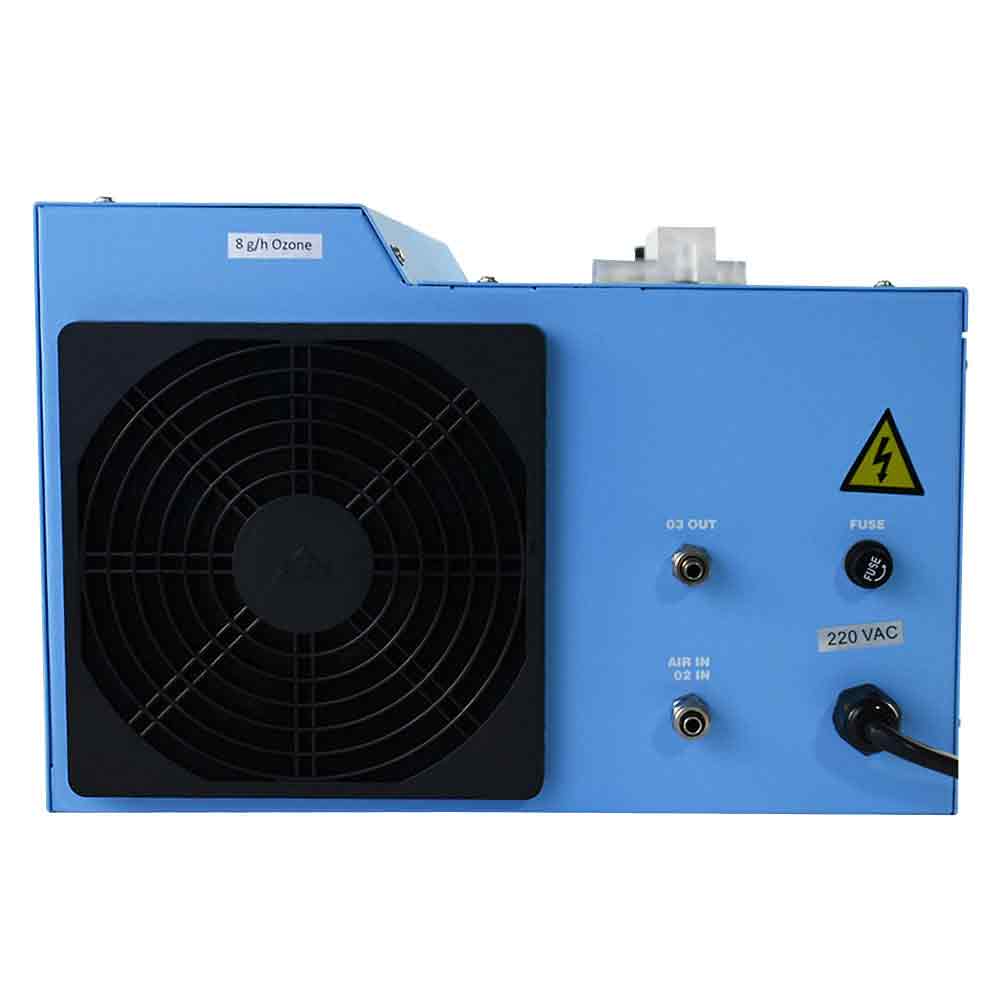

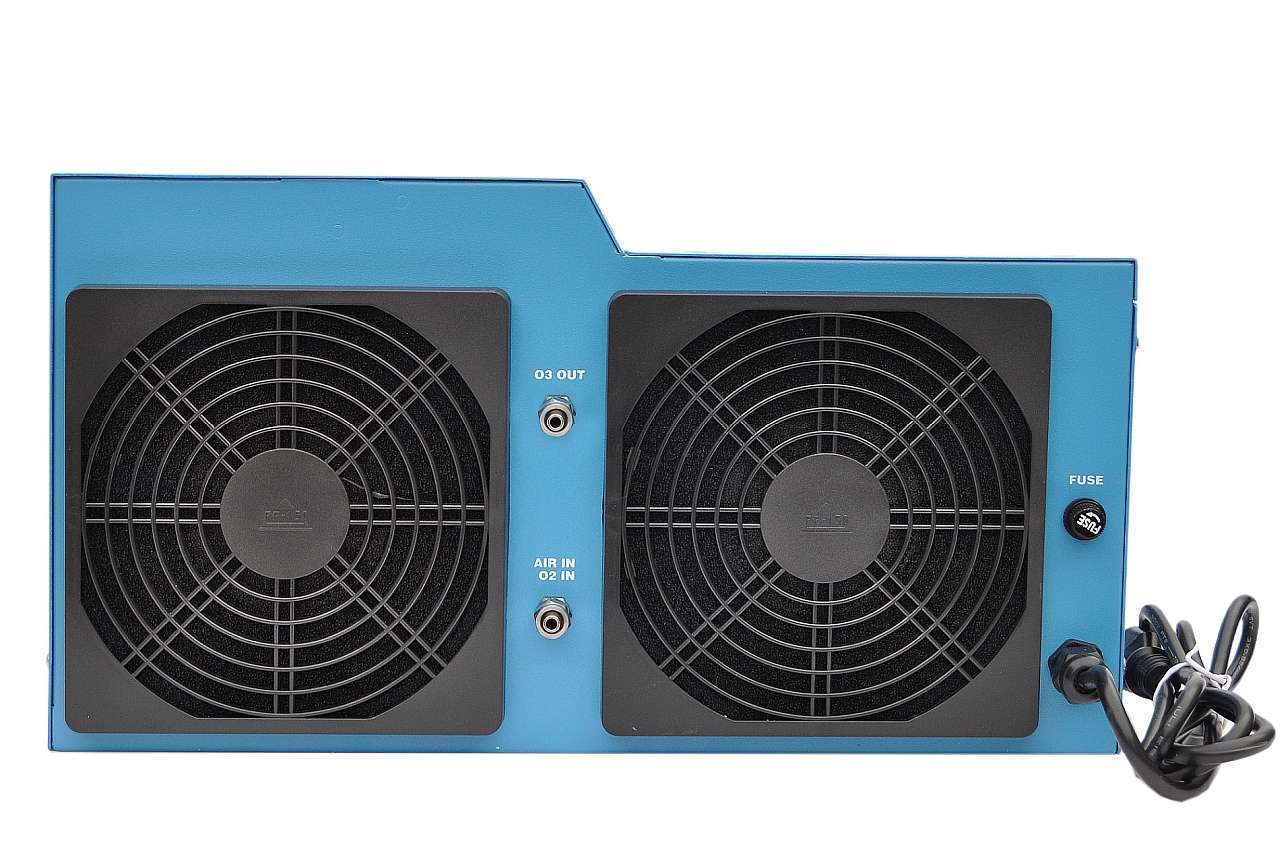

The SP-16G has two fans while the SP-3G, SP-5G, and SP-8G have one.

Caution: Be sure the SP-Series Ozone Generator’s screen does not touch fan blade.

A2Z Ozone recommends to keep the ozone generator in a clean and dust-free environment. Keep the unit covered and away from the elements. Make sure to clean and inspect the ozone generator every three months.

When choosing the model for the swimming pool ozone generator, use this chart as a guide. Note, factors such as water and air temperatures, humidity, quality of water, chemical additives, and amount of use the pool gets will effect the amount of ozone you will need.

Model

Size Pool (Mild)

Size Pool (Tropical)

SP-3G

10,000 Gal / 37,854 L

5,000 Gal / 18,927 L

SP-5G

15,000 Gal / 56,781 L

7,500 Gal / 28,390 L

SP-8G

20,000 Gal / 75,708 L

10,000 Gal / 37,854 L

SP-16G

35,000 Gal / 132,489 L

17,500 Gal / 66,244 L

Related products

QR Code

Desktop: right click QR code with mouse and choose Share.
Cell Phone: Hold finger on QR code until it shows menu to share.

In most cases, you can also scan the code with another device.

Swimming Pool Steve explains Ozone.

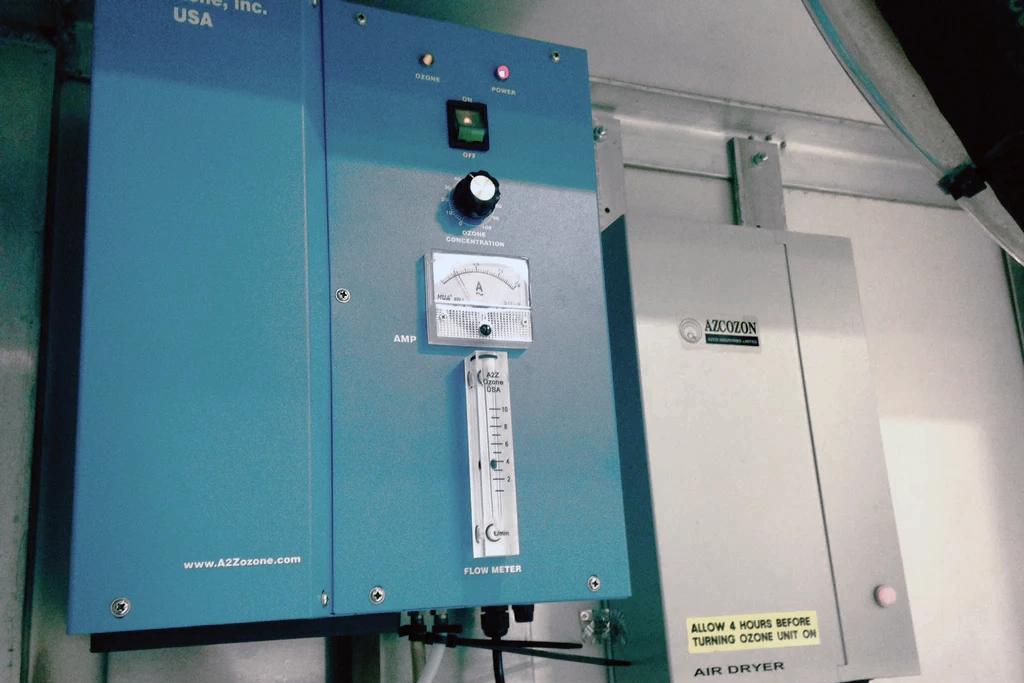

SP-Series Swimming Pool Ozone Generator in Cabinet at Car Wash

Recycle Water at a Car Wash

Our car wash customers save money by recycling water. The SP-Series is a favorite for car wash businesses.

Before coming across A2Z Ozone Inc, I searched the Internet for available pool ozone generators and was disappointed to find that they were far too weak (much less than 1 g/hr whereas my research indicated a need for at least 1-1.5 g/hr for 7400 litre pool) or far too expensive. Needless to say SP3 proved not only powerful (3 g/hr adjustable but we let it run at 100%) but at very affordable price! …as a result, the pool water is so much nicer and there is NO chlorine smell or carcinogenic risks associated with it! Contrary to “”oh, you still have to….”” advice proliferating…

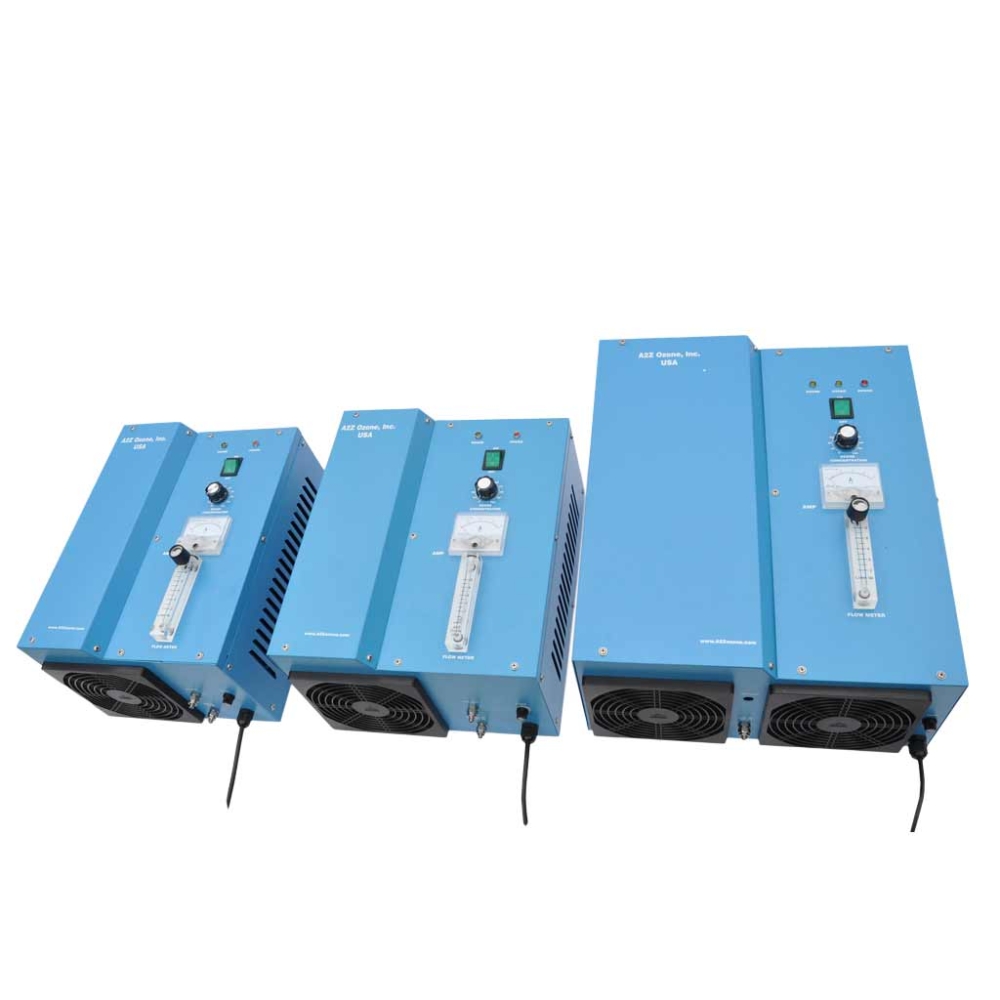

Swimming Pool Water Ozone Generators, SP-Series

An SP-Series Ozone Generator changes everything about a swimming pool

An SP-Series Ozone Generator Provides:

  • Clean, safe water
  • Pool filtration capabilities improve
  • Water consumption decreases
  • Economically and environmentally friendly

Plus:

  • No eye irritants
  • No chlorine smell
  • Clean, pretty hair and skin
  • A refreshing swim
  • There is a real solution to swimming pool issues

    A pool that uses ozone is a pool without the overbearing smell of chlorine. That is because you can reduce the chlorine by up to 95%. So when only a small amount of chlorine is present, the smell of it goes away.

    But, the smell is only a small problem compared to some others that chlorine causes. Swimsuits fade, and along with everything else, you can get brittle and discolored hair.

  • Protect your skin

    Just two hours of pool time a week results in constant dry skin issues for some people.

  • There are economic benefits too

    During the pandemic, pool use skyrocketed. Around that time, there was an accident at a chlorine factory. So, the cost of keeping a clean pool became unreasonably expensive.

    An SP-Series Ozone Generator makes a difference.

  • Swimming in the rain

    Users tell–you have to try it to understand it. They are speaking of the refreshing feeling that a swim in water that is not saturated with chlorine, and has the fresh appeal of a summer rainstorm.

  • Share your good fortune with all of your friends

    So, give ozone a try, and all your swim parties will be fantastic.
