Our Z-Series ozone generators have endless application possibilities. Many customers choose these durable, Commercial-Grade Water Ozone Generators over the MP-Series because they perform better and last longer. Produce farmers, ranchers, aquarists, and fish farmers greatly benefit from this economical choice.
The Z-Series Commercial-Grade Water Ozone Generators, reduce water usage in many applications. They improve the quality of water used in crop production, resulting in better and healthier yields. Produce farmers also rely on the Z-Series to clean their harvest, increasing shelf life and reducing pathogens. Ranchers clean drinking troughs to keep livestock healthy.
Ozone reduces odors and maintenance for aquarists and fish farmers.
Some customers use the Z-Series to ensure rainwater is safe to drink. Others treat well water for whole-house treatment systems.
Model | Max. Ozone Capacity | Oxygen Feed Flow Rate | Ozone Concentration (Adjustable) | Energy Usage |
Z-3G | 3 g/hour | 6 SCFH, 3 LPM | 0-25g/m3 | 110 W |
Z-7G | 7 g/hour | 7.2 SCFH, 3.6 LPM | 0-45g/m3 | 150 W |
Z-10G | 10 g/hour | 8 SCFH, 4 LPM | 30-50 g/m³ | 190 W |
Some Universal Features for the Z-Series Commercial-Grade Water Ozone Generators
Corona Discharge Technology | Variable Ozone Output Control | Cooling Requirement--Air | LED Status Indicators (Ozone, Pump) |
Built for Longer Runtimes | Low Maintenance Requirement | Easy Set-Up | Easy Operation |
0-0.9 mA Panel Meter | Stainless Steel Ozone Resistant Frame, Outlets | Ozone Resistant PTFE, Quartz Glass, and Ceramic Tubes | Runs by Internal Air Compressor or Oxygen Hook-Up |

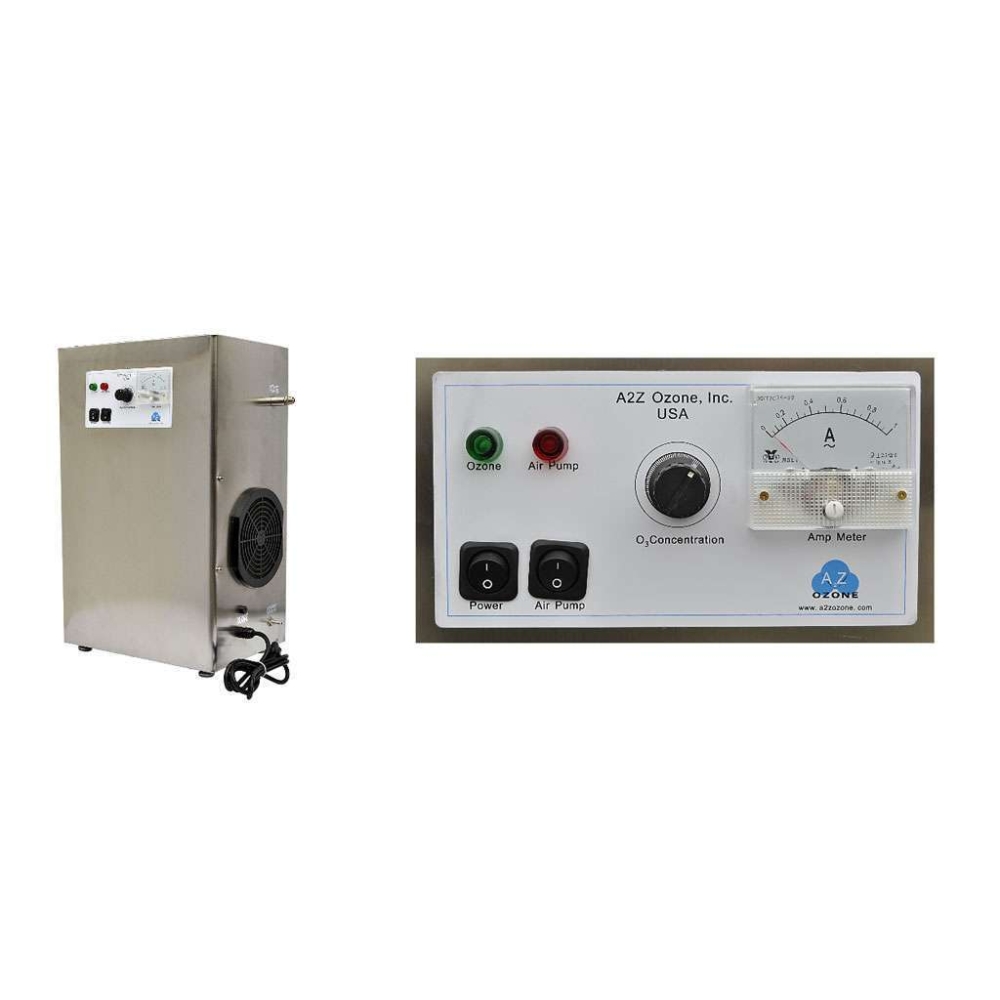

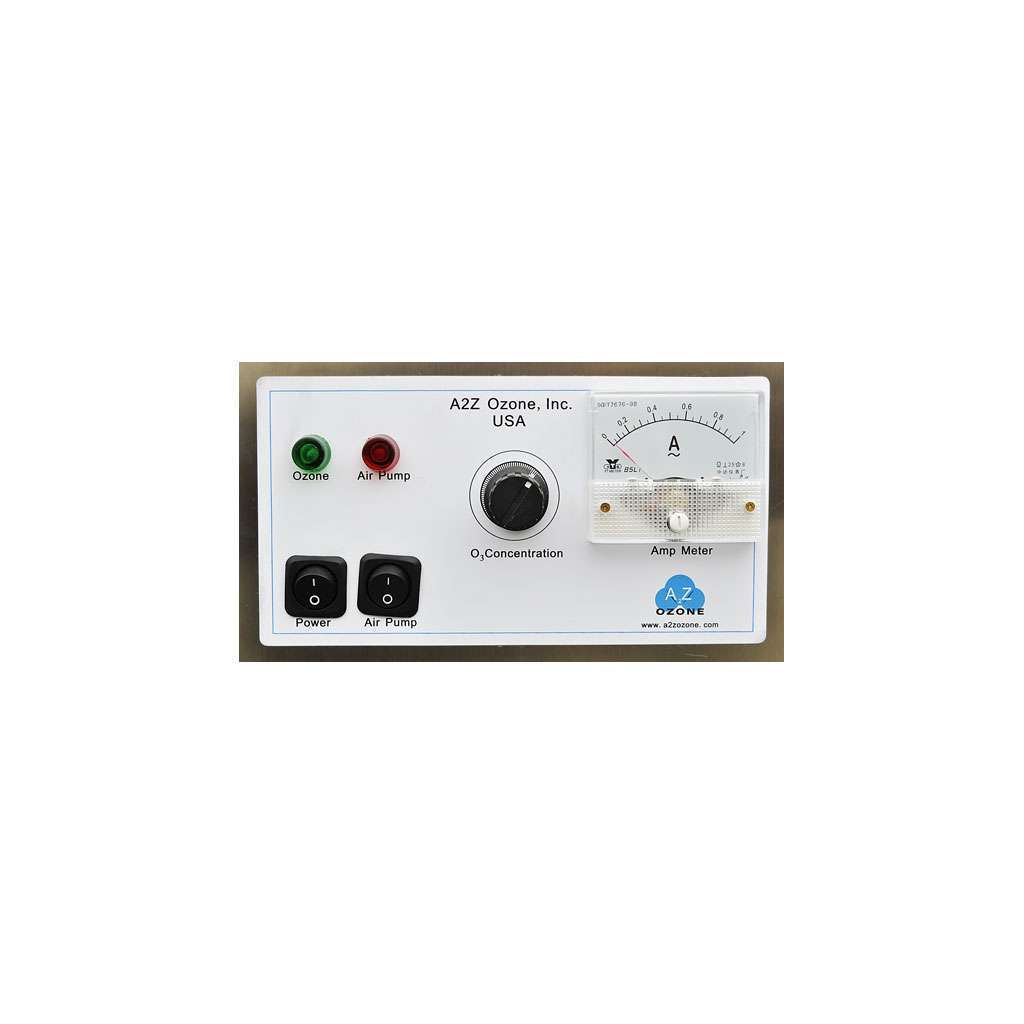

Some Unique Features of the Z-Series
- Power/Air Pump switches – turn on ozone generator and compressor
- LED status indicator – shows the operation
- O3 Concentration dial – A potentiometer controls ozone concentration
- Amp Meter 0-0.9 mA – responds to the O3 Concentration dial, indicating the ozone output
- Externally accessible fuse – protects unit (electrically)
Some Universal Measurements for the Z-Series Commercial-Grade Water Ozone Generators
Barb Sizes: | Ozone Out: 1/4" Stainless Steel Barb | Air Out: 1/4" FNPT | Oxygen In: 1/4" Stainless Steel Barb |
Dimensions/Weight: | 110VAC: 31 Pounds, 26x16x14 Inches | 220VAC: 28 Pounds, 26x16x14 Inches |
- English User’s Manual (Manuals are Also Available in French, German, Italian, Portuguese, and Spanish. Please Contact Us with Your Request.)
- 8 Feet PTFE hard tubing, ID 1/4″, OD 5/16″ (Ozone Out)
8 Feet silicone flexible tubing (for Oxygen In Only) - 1-Year Parts and Service Warranty
A2Z Ozone’s Z-Series Commercial-Grade Water Ozone Generators are equipped with an air pump, so they do not need an external air source to operate efficiently.
Using an oxygen source increases the amount of ozone production to close to 100% and ensures a more pure form of ozone creation. Without oxygen, the generator produces about 1/5 of the ozone indicated. Plus, using ambient air produces byproducts along with the ozone.
For your convenience, we sell oxygen generators at reasonable prices. These are the oxygen generators we know will work with our ozone generators.
Recommended Oxygen Source, Oxygen Generator Model:
Topaz Oxygen Generator
(Ozone output of 1G to 16G)
Only Use Official A2Z Ozone Replacement Parts and Accessories
Purchase these directly from our website. You can also Contact Us for assistance.
Protect Your Health and Your Ozone Generator
- Please use caution when operating an ozone generator
- Make sure to read your manual completely
- Limit exposure to ozone gas according to OSHA guidelines
- Keep liquids away from the ozone generator
